Knurling tool 12x12 mm right/left, range 3-50 mm (for 1 knurl 15x4x8 mm)

Name: Knurling tool 12x12 mm right/left, range 3-50 mm (for 1 knurl 15x4x8 mm)
Brand: ZEUS
SKU: 3801501212
Availability: OutOfStock

Производитель: ZEUS Модель: 43465

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Design:Universal r/l

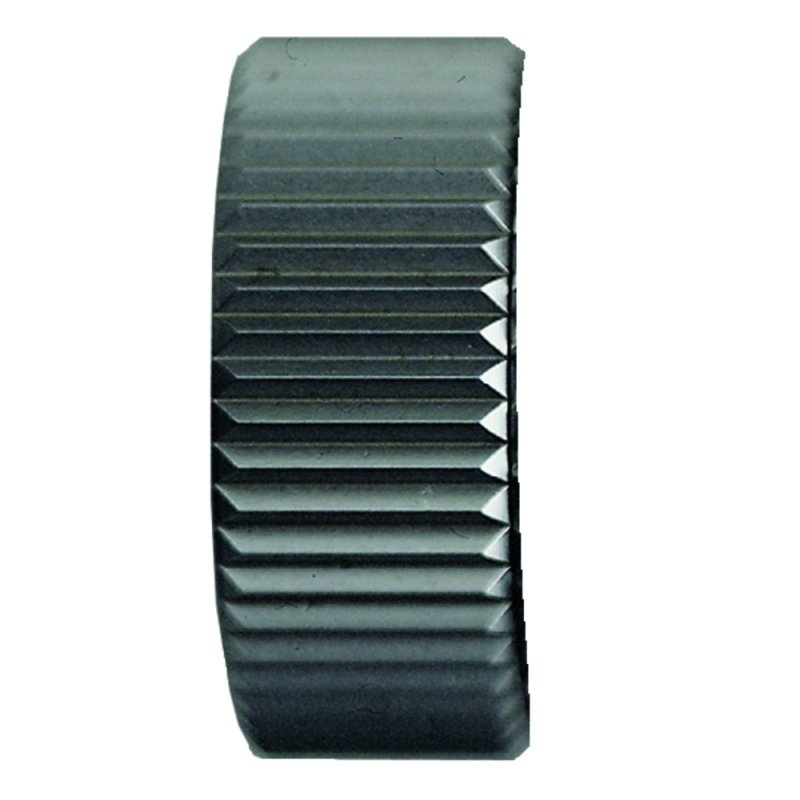

for knurling wheel:15 x 4 x 8 mm

L:103.5 mm

Packaging unit:1

Shank height (H):12 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Knurling tool 12x12 mm right/left, range 3-50 mm (for 1 knurl 15x4x8 mm)

0.0 грн.

Описание

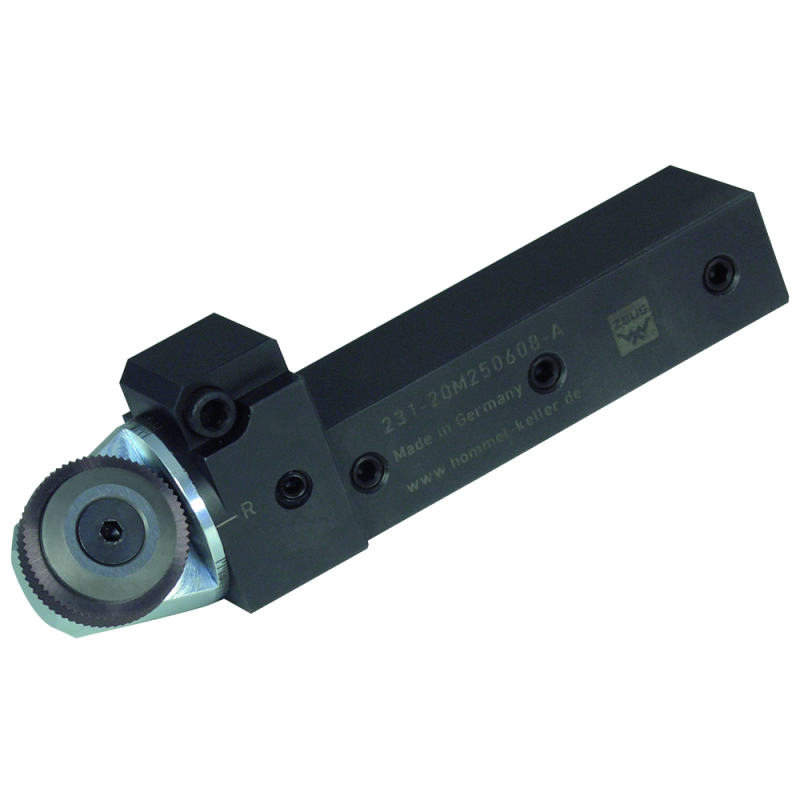

Knurl cutting tool for 1 knurling wheel, 25 x 6 x 8 mm

Use: Knurl cutting, workpiece knurl profile according to DIN 82: RAA
Knurling wheels: RAA = 1 x BR 30° for right-hand use, RAA = 1 x BL 30° for left-hand use
Machine type: conventional and CNC automated lathes, center height integrated in the tool
Modular design, tool can be used universally as a right-hand or left-hand version
Quick retooling by simply removing and turning the knurling head, precise axis position after every reassembly thanks to 3-point support
With position indicator for optimal initial positioning
Fine adjustment of the knurling head via threaded spindle with scale
Precise control for axially parallel knurling thanks to adjustable knurling head
Clearance angle set using grub screws in the shank
Special surface hardening for increased wear resistance
Supplied without knurling wheel
