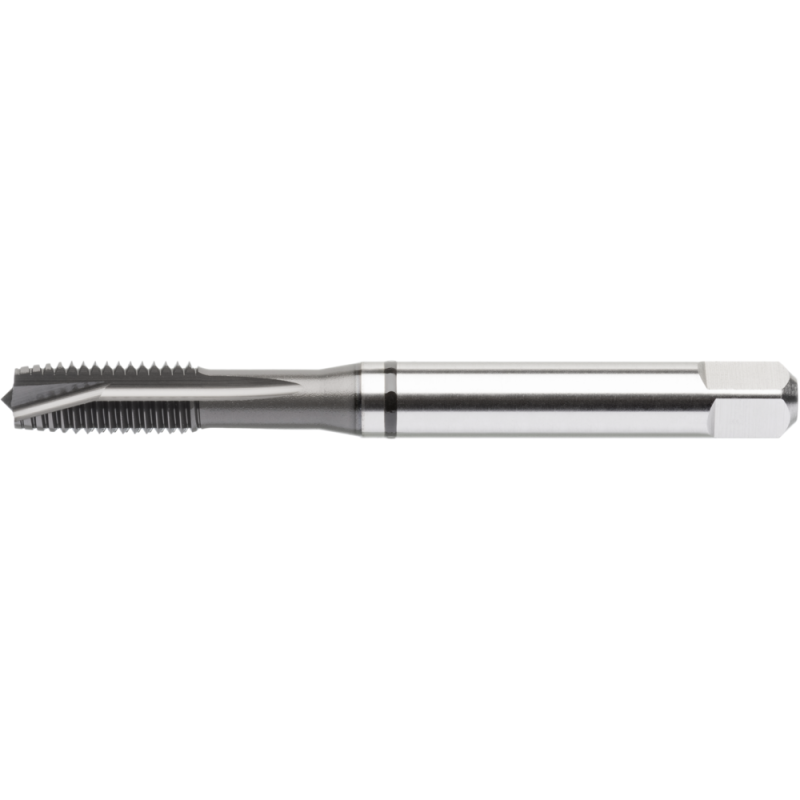

Machine tap HSS-E DIN371B M8 through-hole (universal) Ultra-HL

Name: Machine tap HSS-E DIN371B M8 through-hole (universal) Ultra-HL
Brand: ATORN
SKU: 1347550080
Availability: OutOfStock

Производитель: ATORN Модель: 65099

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Machine tap HSS-E DIN371B M8 through-hole (universal) Ultra-HL

Нет в наличии

0.0 грн.

C:6.2 mm

Coating:TiAlN

Color ring system:UNI

Coolant supply:External

Cutting data:Cutting angle information - yes

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Machine tap HSS-E DIN371B M8 through-hole (universal) Ultra-HL

0.0 грн.

Описание

BALINITE ® HARDLUBE
Universal machine tap ULTRA-HL

ISO 6H metric thread
Straight-fluted with spiral point
Type B, 3.5-5 thread chamfer
DIN 371 construction dimensions = up to M10, DIN 376 = from M12
Cutting material HSS-E, HSS-E-PM, Hardlube coating
For through-hole threads
Possible thread depth 3 x D
BALINITE ® HARDLUBE : The high level of hardness and temperature resistance of the TiAlN layer effectively protects cutting edges from wear, while the excellent sliding and lubricating properties of the WC/C ensure smooth chip flow. The result: Greater production reliability thanks to reliable, reproducible performance.

Usage characteristics

aluminum < 8% Si
brass long
brass short
bronze long
cast iron GGG
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2

Характеристики

Totally stainless steel suitability

Характеристики

6.2 mm

Coating

TiAlN

Color ring system

UNI

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

HSSE

8 mm

Design

HSS-E

DIN

371

fitness hartl total

Form/Chamfer

90 mm

18 mm

35 mm

Max. thread depth

3xD

Nominal diameter

8 mm

Packaging unit

Pitch

1.25 mm

Shank square tolerance

h12

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for thread

M3-M20

Surface

ULTRA HL

Tapping hole Ø

6.8 mm

Thread

Thread angle

60 °

Threaded hole type

Clearance hole ≤ 3xD

Tolerance of screw taps

ISO 2 (6H)

Tolerance of shank diameter

Twist angle

0°

Type

UNI 40 Control
