Machine vice BB-125mm mech. (wide)

Name: Machine vice BB-125mm mech. (wide)
Brand: FRESMAK
SKU: 4586030125
Availability: OutOfStock

Производитель: FRESMAK Модель: 34666

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

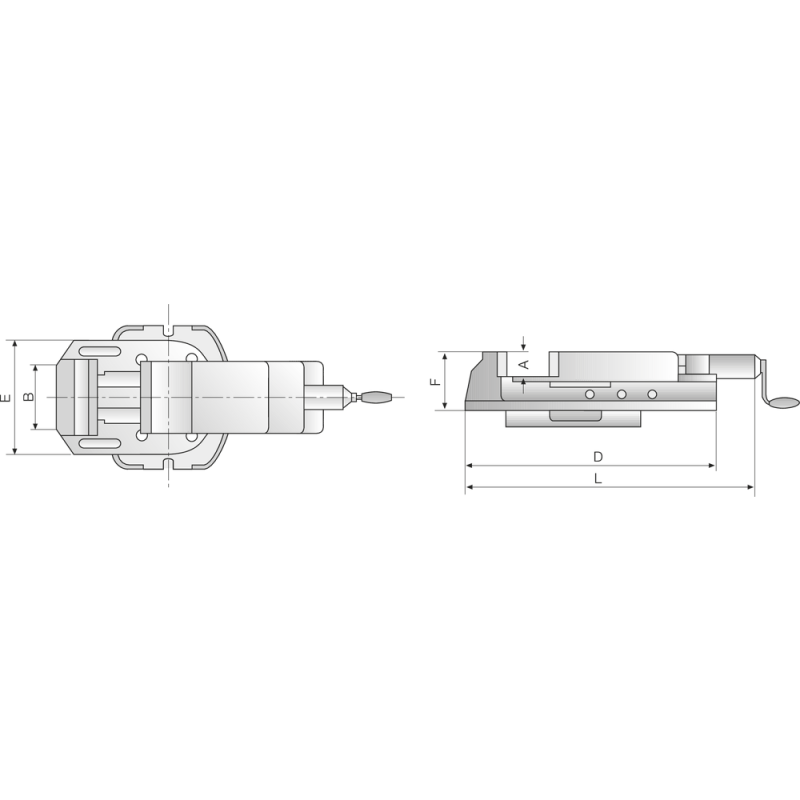

a:40 mm

Clamp force:40 kN

Clamping range:0 - 205 mm

D:425 mm

Design:mech./mech.

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Machine vice BB-125mm mech. (wide)

0.0 грн.

Описание

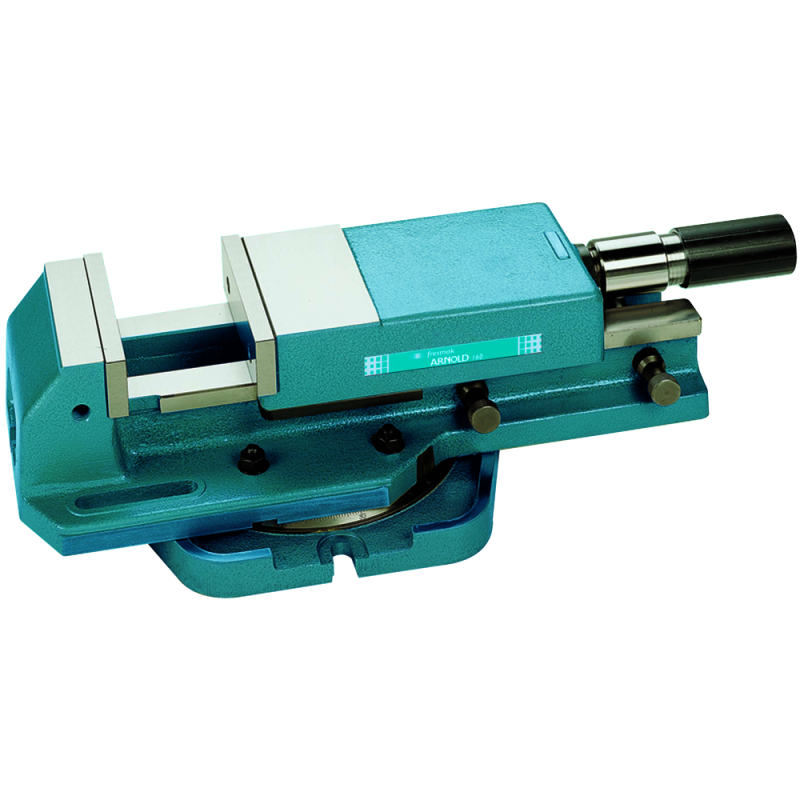

High-pressure machine vice

Mechanical/mechanical or mechanical/hydraulic
Base body and clamping jaw holder made from high-quality ductile iron, GJS 70
Clamping precision within 0.01 mm at the same clamping pressure
Both clamping areas can be roughly set in a matter of seconds via bolts (covered clamping areas)
Aligned on the work table via longitudinal or transverse slots (20H7) in the base surface
All wearing parts, clamping jaws and guideways hardened and ground (60 HRC)
Multiple vices of the same height are available with a pair accuracy of 0.01 mm
Spindle can be optionally replaced with a pneumatic/hydraulic version
Supplied with 1 pair of smooth jaws and 1 hand crank, without swivel base
