Measuring projector PJ-Plus P1010A (measurement range XY-axis 100x100mm)

Name: Measuring projector PJ-Plus P1010A (measurement range XY-axis 100x100mm)
Brand: MITUTOYO
SKU: 5620011010
Availability: OutOfStock

Производитель: MITUTOYO Модель: 53352

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Measuring projector PJ-Plus P1010A (measurement range XY-axis 100x100mm)

Нет в наличии

0.0 грн.

E:100 x 100 mm

Model:PJ-PLUS P1010A

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Measuring projector PJ-Plus P1010A (measurement range XY-axis 100x100mm)

0.0 грн.

Описание

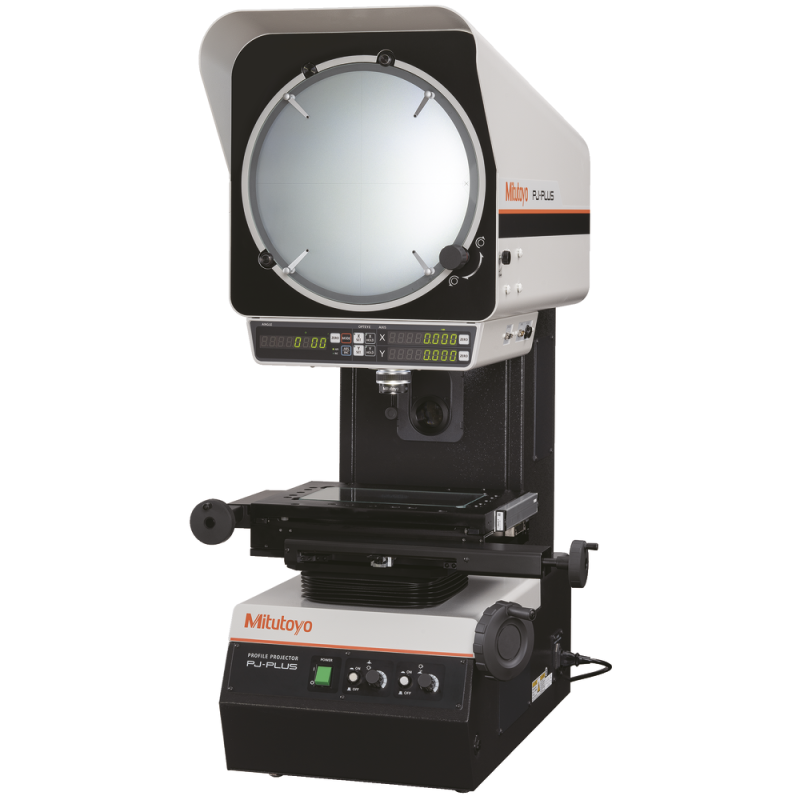

Measuring projector PJ-PLUS

Profile projector for accurate transmitted and incident light testing of small to medium-sized workpieces

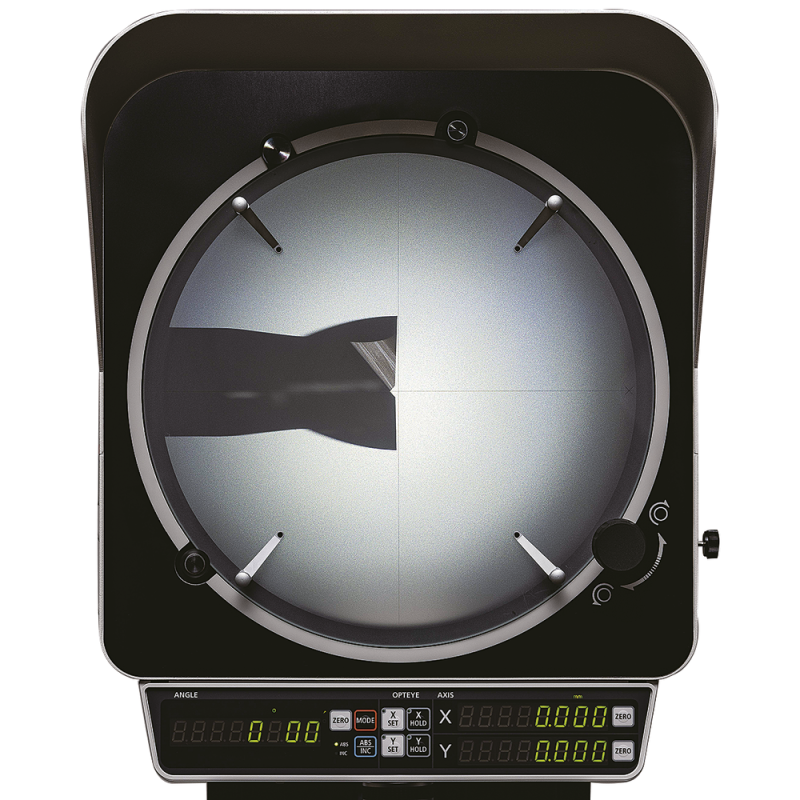

Clear image across the entire screen O of 315 mm
Screen can be rotated 360° with cross hairs
10x lens with separate semi-opaque incident mirror included

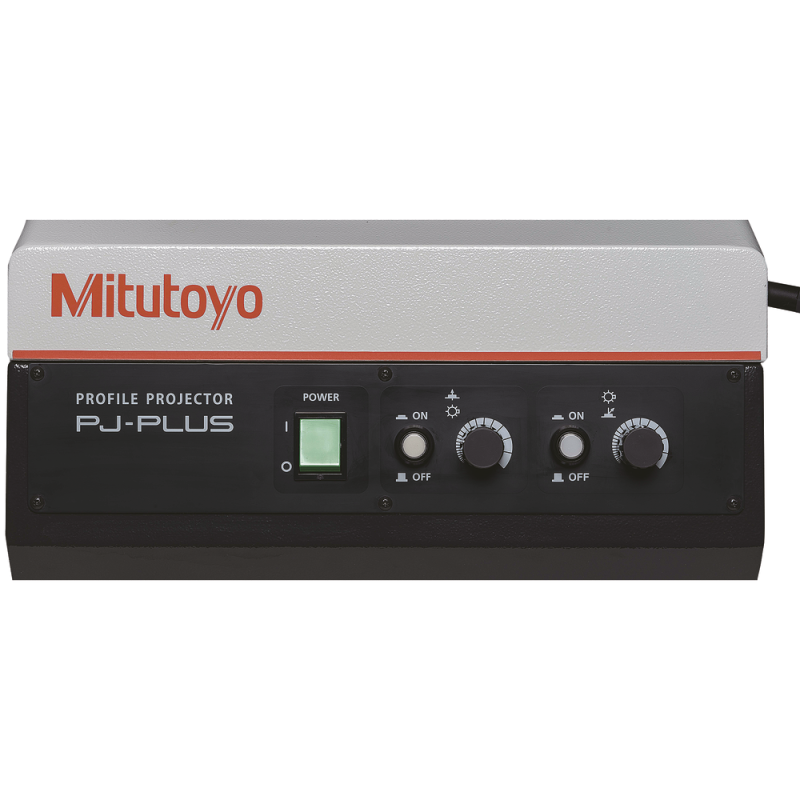

LED transmitted and incident lighting with infinitely variable luminous intensity control for long service life at low power consumption
Telecentric lighting system for uniform lighting
Fanless design prevents contaminants from entering the unit
Built-in digital displays for reading the angle of the rotatable screen
Switch between 1 arc minute or 0.01 degree, with 0.001 mm resolution for the X and Y axis
RS-232C interface for X and Y axis
562001 1010 with 100 x 100 mm coordinate measuring table, fine and quick adjustment across the entire movement range, integrated glass scales, max. workpiece weight: 10 kg
562001 2010 with 200 x 100 mm coordinate measuring table, fine and quick adjustment across the entire movement range, integrated glass scales, max. workpiece weight: 8 kg
Supplied with power cable for 230 V / 50 Hz, covering hood, 10x lens, anti-glare protection, operating manual in disposable shipping packaging
Calibration on request
