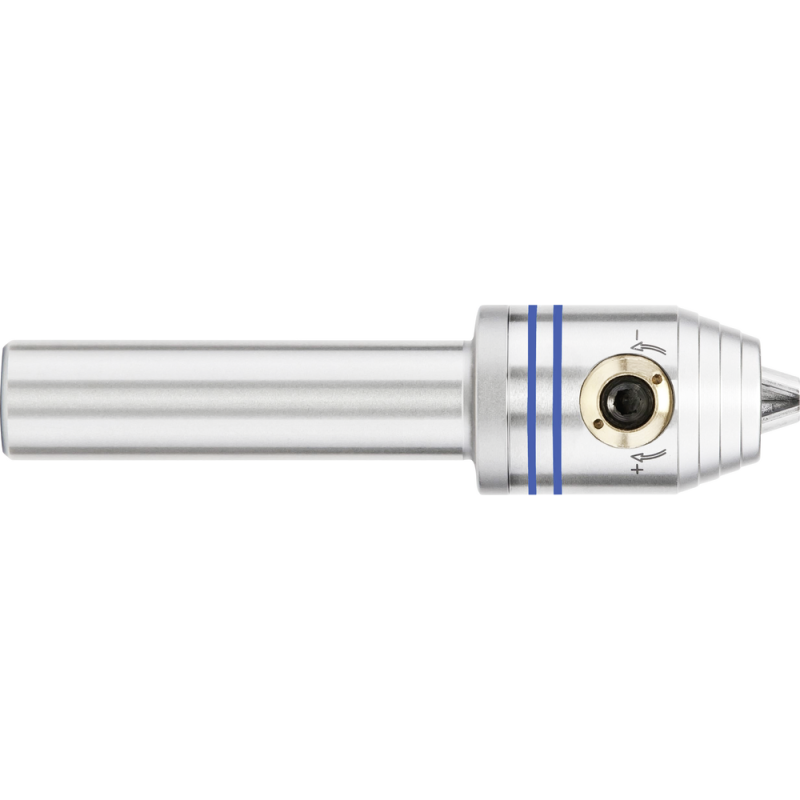

Micro-universal chuck, shank 16mm A= 80mm clamping range 0.2-3.4mm

Name: Micro-universal chuck, shank 16mm A= 80mm clamping range 0.2-3.4mm
Brand: ATORN
SKU: 4424011608
Availability: OutOfStock

Производитель: ATORN Модель: 39648

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Balancing quality:G 2.5 at 25,000 rpm

Concentricity tolerance:0.005 mm

Coolant supply:Internal axial

D1:16 mm

External Ø:19 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Micro-universal chuck, shank 16mm A= 80mm clamping range 0.2-3.4mm

0.0 грн.

Описание

Micro universal chuck

Specially developed for micro machining
For machining applications in the fields of medical technology, clock and watchmaking, precision engineering and electrical engineering
Pre-balanced to G 2.5 / 25,000 rpm
True running accuracy 0.005mm
Clamping range from 0.2 to 3.4 mm and 0.2 to 6.4 mm

Clamping range 0.2 to 3.4 mm

Характеристики

Balancing quality

G 2.5 at 25,000 rpm

Concentricity tolerance

0.005 mm

Coolant supply

Internal axial

16 mm

External Ø

19 mm

80 mm
