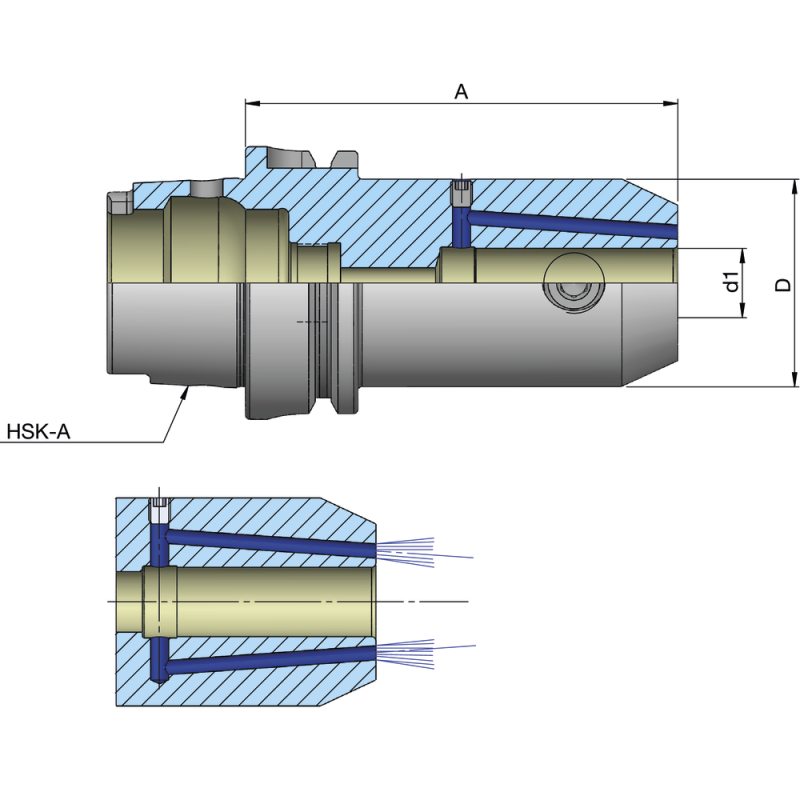

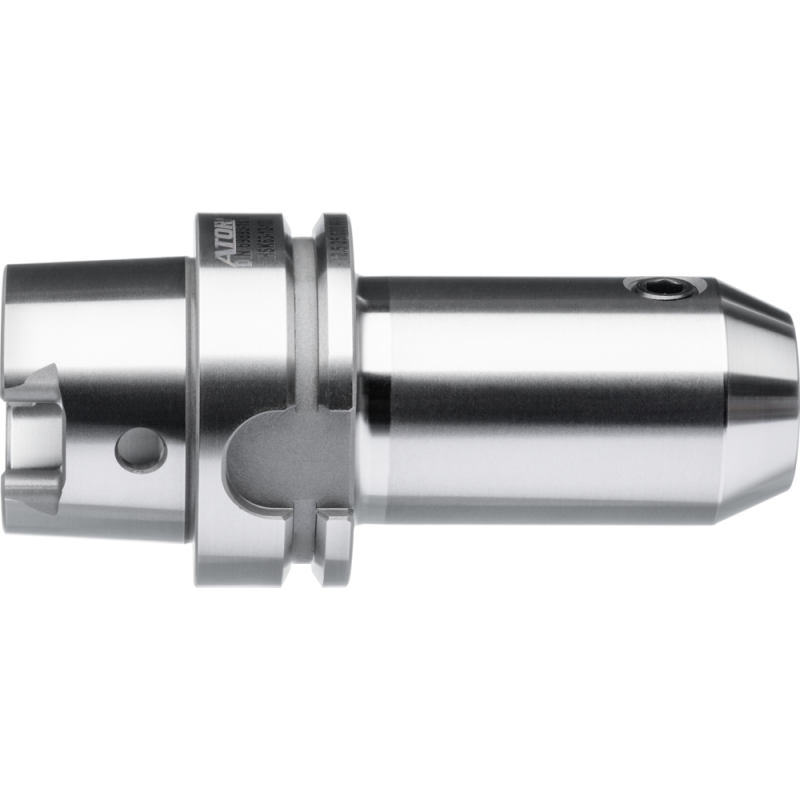

Mill. cutter mount (DIN6359) DIN69893 HSK-A63, 10mm A=100mm with CB G2.5 25,000

Name: Mill. cutter mount (DIN6359) DIN69893 HSK-A63, 10mm A=100mm with CB G2.5 25,000
Brand: ATORN
SKU: 4345116410
Availability: OutOfStock

Производитель: ATORN Модель: 47096

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Mill. cutter mount (DIN6359) DIN69893 HSK-A63, 10mm A=100mm with CB G2.5 25,000

Нет в наличии

0.0 грн.

a:100 mm

Balancing quality:G 2.5 at 25,000 rpm

Coolant supply:KKB

D:35 mm

D1:10 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Mill. cutter mount (DIN6359) DIN69893 HSK-A63, 10mm A=100mm with CB G2.5 25,000

0.0 грн.

Описание

Milling cutter holding fixture, DIN 6359

For straight shanks, DIN 1835-B (WELDON)
Pre-balanced to G 2.5 / 25,000 rpm
Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm ²
Case hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
Max. true running accuracy < 0.005 mm
Supplied with clamping screw
Additional shank designs and AD/B version available on request
Version with coolant bores: O 6 to O 18 mm = two coolant bores, O 20 to O 40 mm = four coolant bores
Version with coolant bores: O 6 to O 18 mm = two coolant boresO 20 to O 40 mm = four coolant bores
