Milling cutter holding fixture (DIN6359) DIN69871AD SK40, 10mm A=50mm with CB

Name: Milling cutter holding fixture (DIN6359) DIN69871AD SK40, 10mm A=50mm with CB
Brand: SARA
SKU: 4345164010
Availability: OutOfStock

Производитель: SARA Модель: 52337

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Milling cutter holding fixture (DIN6359) DIN69871AD SK40, 10mm A=50mm with CB

Нет в наличии

0.0 грн.

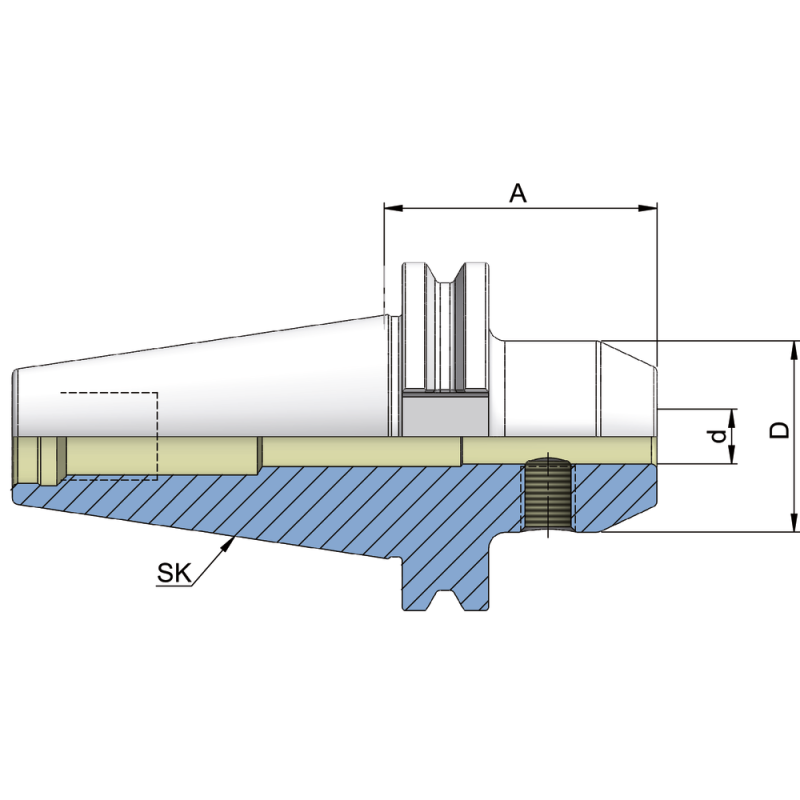

a:50 mm

D:35 mm

D1:10 mm

Design:with cooling channels

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Milling cutter holding fixture (DIN6359) DIN69871AD SK40, 10mm A=50mm with CB

0.0 грн.

Описание

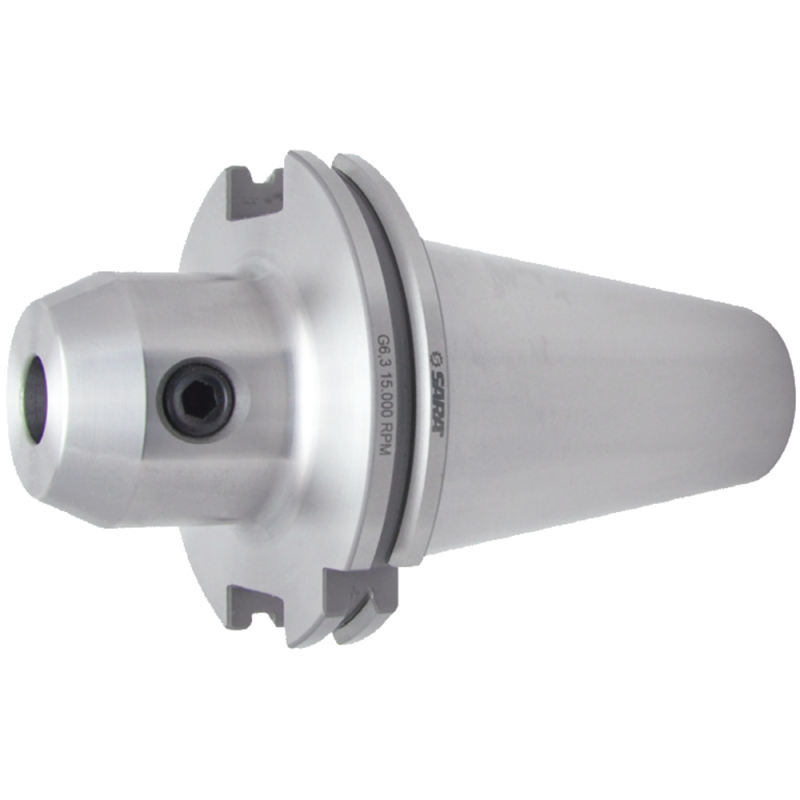

Milling cutter holding fixture, DIN 6359

For straight shanks, DIN 1835-B (WELDON)
Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm ²
Case hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
Max. true running accuracy < 0.005 mm
Supplied with clamping screw
Art.no. 434549 and 434516 at O 6 to O 18 with two coolant bores
Art.no. 434549 and 434516 at O 20 to O 40 with two coolant bores
