Modular multi-clamping fixture 300x50mm

Name: Modular multi-clamping fixture 300x50mm
Brand: SARA
SKU: 4602500300
Availability: OutOfStock

Производитель: SARA Модель: 43512

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Clamping rail height:50 mm

Clamping rail length:300 mm

Clamping rail width:50 mm

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Modular multi-clamping fixture 300x50mm

0.0 грн.

Описание

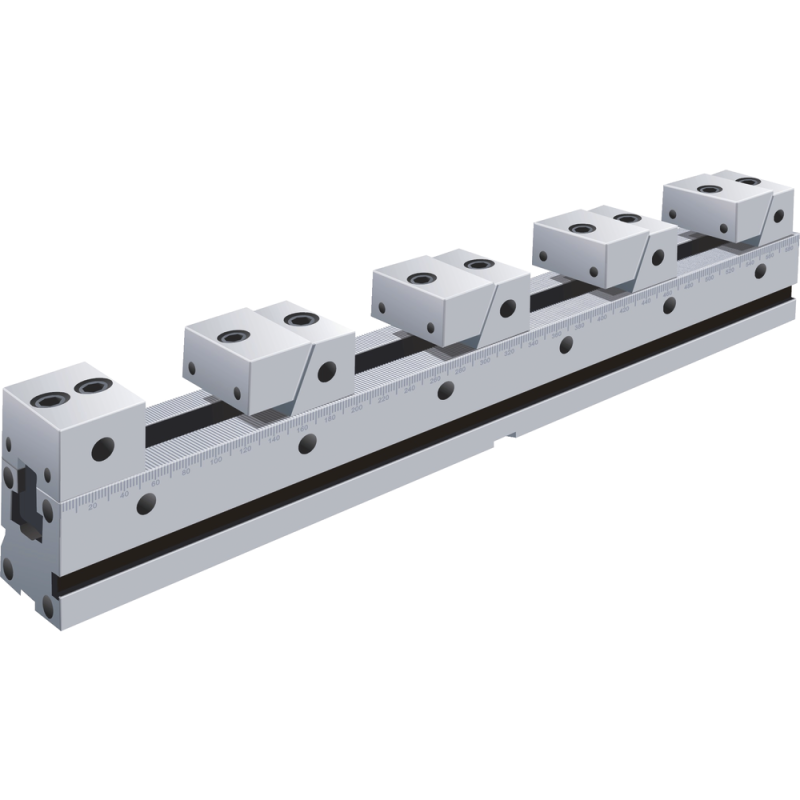

Modular multi-clamping fixture

Mechanical clamping fixture with a modular design
Accuracy within 0.02 mm
Base body made of hardened steel, 60 HRC
Depending on clamping rail length, fully equipped for clamping four workpieces
Clamping jaws are 1 mm narrower than the base body, allowing lateral use of the clamp
Also available with stepped jaws on request, prismatic jaws available as accessories
Supplied with four tool stops, clamping claws, slot nuts, alignment blocks, lifting screws and a clamping key, one fixed jaw and four intermediate jaws

Slide rail, width 50 mm

Характеристики

Clamping rail height

50 mm

Clamping rail length

300 mm

Clamping rail width

50 mm

Packaging unit
