Multi-clamping slide rail set 200x50x80mm (4-pieces)

Name: Multi-clamping slide rail set 200x50x80mm (4-pieces)
Brand: ATORN
SKU: 4640012050
Availability: OutOfStock

Производитель: ATORN Модель: 43295

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Multi-clamping slide rail set 200x50x80mm (4-pieces)

Нет в наличии

0.0 грн.

Base body height:80 mm

Base body length:200 mm

Base body width:50 mm

Basic body dimension:200 x 50 x 80 mm

Clamping rail height:80 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Multi-clamping slide rail set 200x50x80mm (4-pieces)

0.0 грн.

Описание

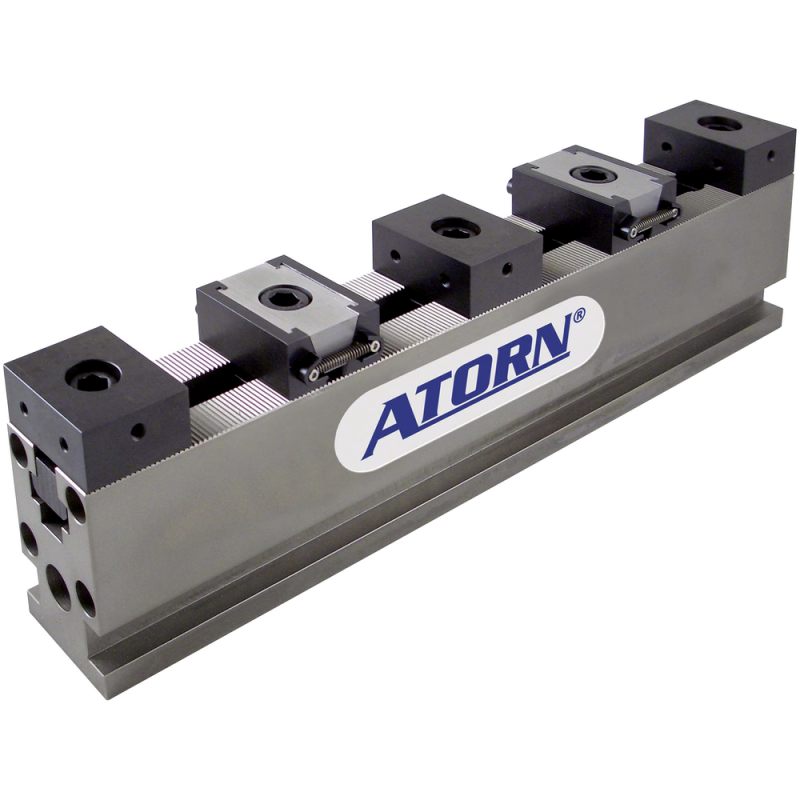

Modular multi-clamping fixture

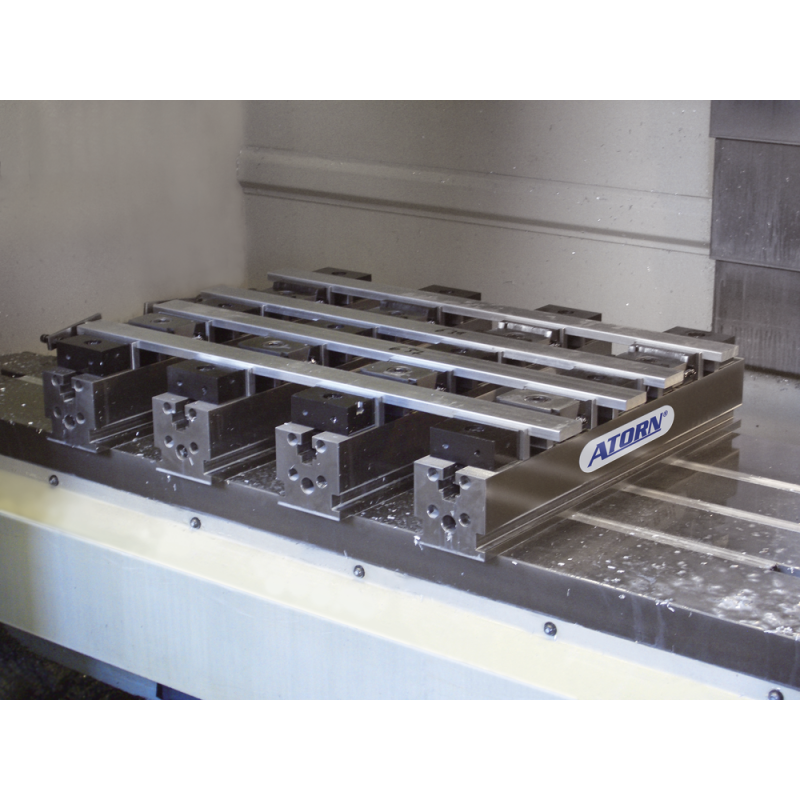

Quick and precise workpiece clamping on vertical and horizontal machining centers, milling and grinding machines
Standard clamping device for different workpieces
Wedge clamps of various sizes can be used
Allows different workpieces to be clamped in extremely confined spaces
Multiple slide rails combined by means of a connection system, optimal length adjustment to the work table
Tombstones available on request

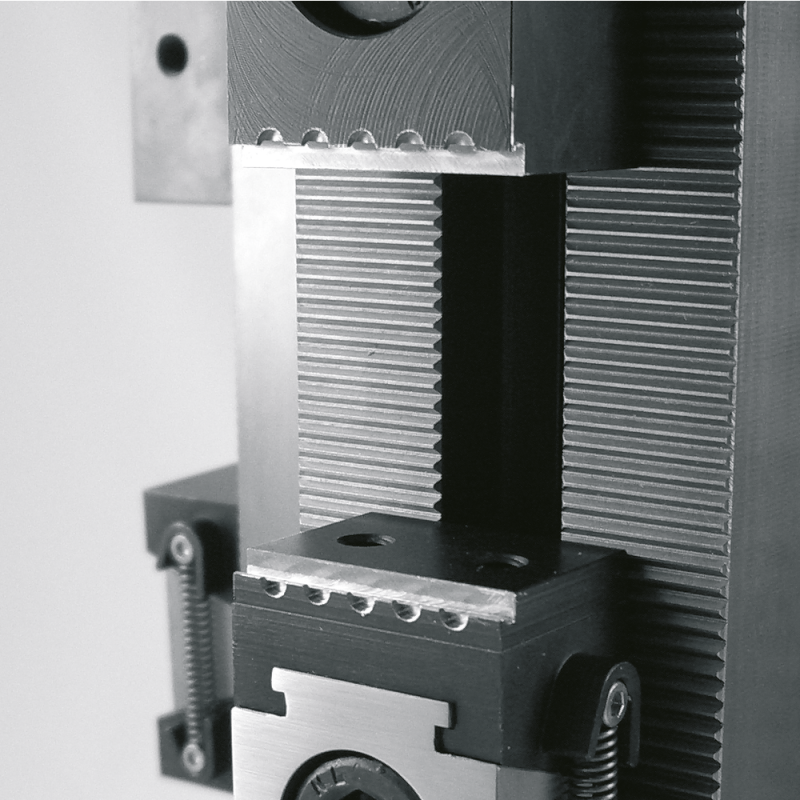

60° toothing

Particular benefits:

Perform numerous clamping tasks with one clamping system
Can also be used on ATORN zero-point clamping systems
All system components are compatible
Easy-to-install stop system
Cost-effective clamping system

Multi-clamping slide rail sets

Rail-mounted clamping elements
Other combinations available on request

Particular benefits:

Характеристики

Base body height

80 mm

Base body length

200 mm

Base body width

50 mm

Basic body dimension

200 x 50 x 80 mm

Clamping rail height

80 mm

Clamping rail length

200 mm

Clamping rail length x width x height

200 x 50 x 80 mm

Clamping rail width

50 mm

Contents

1x slide rail, 2x smooth fixed jaws, 1x smooth wedge clamp

Jaw Height

22 mm

Jaw length

50 mm

Jaw length x jaw width x jaw height

50 x 42 x 22 mm

Jaw width

42 mm

Length x width x height

200 x 50 x 80 mm

Number of clamping rails

1 pc.

Number of Jaws

2 pc.

Number of wedge clamps

1 pc.

Packaging unit

Wedge clamp height

22 mm

Wedge clamp length

60 mm

Wedge clamp length x width x height

60 x 39 x 22 mm

Wedge clamping width

39 mm
