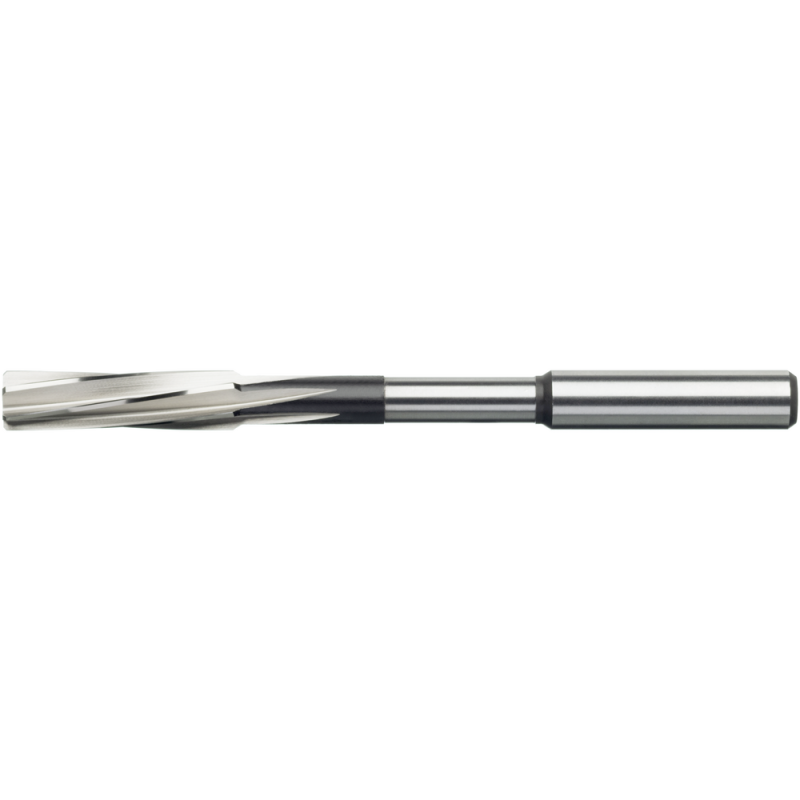

NC machine reamer HSS-E sim. to DIN212D Ø12.01mm (steel/cast iron)

Нет в наличии

0.0 грн.

Bore diameter max.:12.01 mm

Bore diameter min.:12.013 mm

Cantilever length:111 mm

Conical transition neck contour (xsg):111 mm

Coolant supply:External

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

NC machine reamer HSS-E sim. to DIN212D Ø12.01mm (steel/cast iron)

0.0 грн.

Описание

1/100 NC machine reamers

With straight shank and 9° left-hand twist, ground chip space
Form B up to O 2.03 mm with end-to-end shank and centering point on both sides
Form D from O 2.98-12.03 mm with offset shank
Manufacturing tolerances: Nominal dimensions = 0/+ 0.003 mm

Specify nominal dimension D in mm as a four digit figure:

eg 0.72 mm = 0072, 5.14 mm = 0514, 11.00 mm = 1100

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.15 mm/rev

Totally stainless steel suitability

Характеристики

Bore diameter max.

12.01 mm

Bore diameter min.

12.013 mm

Cantilever length

111 mm

Conical transition neck contour (xsg)

111 mm

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

HSSE

12.01 mm

10 mm

Diameter max.

12.03 mm

Diameter min.

2.47 mm

Diameter min./max.

2.47-12.03 mm

DIN

Company standard

Effective length

110 mm

fitness hartl total

Gate length

1 mm

Inner diameter

10 mm

151 mm

44 mm

40 mm

Outside diameter

9.2 mm

Packaging unit

Point angle

90 °

Shape

Suitability not total iron

Suitability titanium/nickel/super total

Surface

Uncoated

Tolerance of fit

Tolerance of shank diameter

Tool holding device

HA parallel shank

Twist angle

9° (left)

6 pc.
