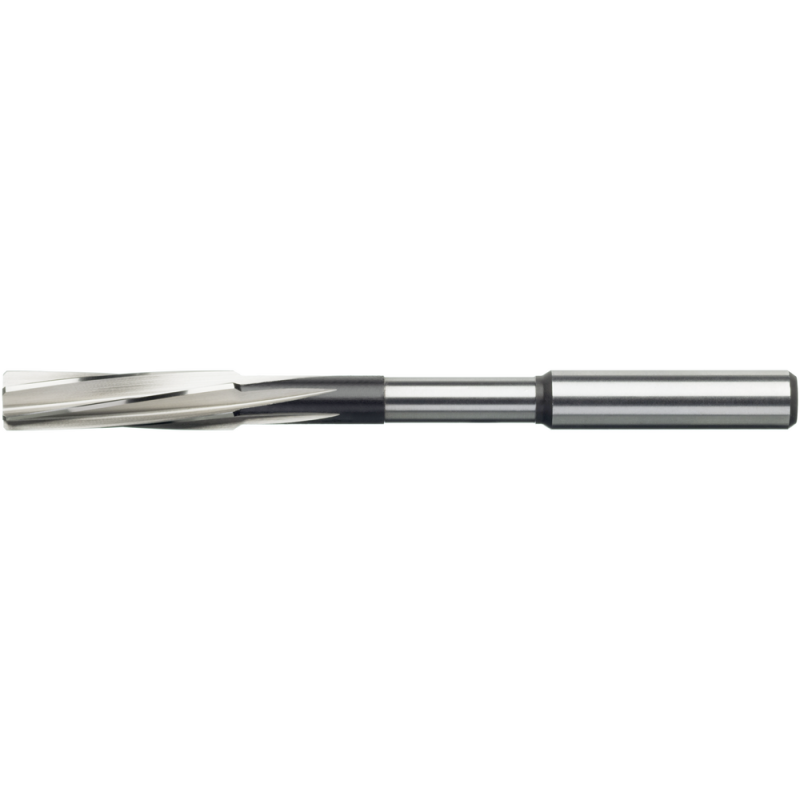

NC machine reamer HSS-E sim. to DIN212D Ø6.00mm (steel/cast iron)

Name: NC machine reamer HSS-E sim. to DIN212D Ø6.00mm (steel/cast iron)
Brand: ATORN
SKU: 1610300600
Availability: OutOfStock

Производитель: ATORN Модель: 33408

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

NC machine reamer HSS-E sim. to DIN212D Ø6.00mm (steel/cast iron)

Нет в наличии

0.0 грн.

Bore diameter max.:6 mm

Bore diameter min.:6.003 mm

Cantilever length:57 mm

Conical transition neck contour (xsg):57 mm

Coolant supply:External

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

NC machine reamer HSS-E sim. to DIN212D Ø6.00mm (steel/cast iron)

0.0 грн.

Описание

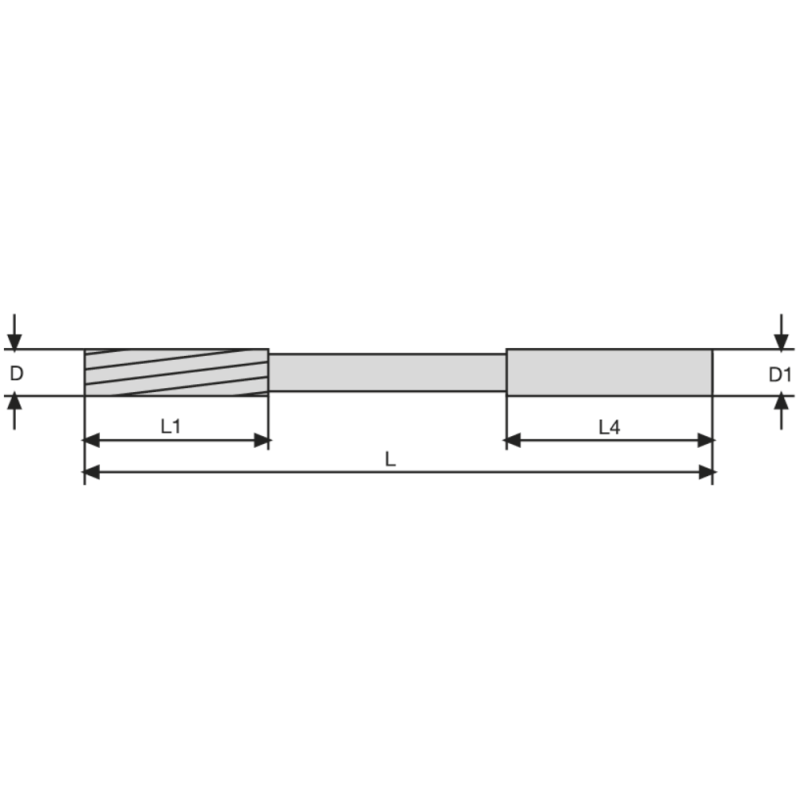

1/100 NC machine reamers

With straight shank and 9° left-hand twist, ground chip space
Form B up to O 2.03 mm with end-to-end shank and centering point on both sides
Form D from O 2.98-12.03 mm with offset shank
Manufacturing tolerances: Nominal dimensions = 0/+ 0.003 mm

Specify nominal dimension D in mm as a four digit figure:

eg 0.72 mm = 0072, 5.14 mm = 0514, 11.00 mm = 1100

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.1 mm/rev

Totally stainless steel suitability

Характеристики

Bore diameter max.

6 mm

Bore diameter min.

6.003 mm

Cantilever length

57 mm

Conical transition neck contour (xsg)

57 mm

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

HSSE

6 mm

Diameter max.

12.03 mm

Diameter min.

2.47 mm

Diameter min./max.

2.47-12.03 mm

DIN

Company standard

Effective length

56 mm

fitness hartl total

Gate length

0.6 mm

Inner diameter

4.8 mm

93 mm

26 mm

36 mm

Outside diameter

5.5 mm

Packaging unit

Point angle

90 °

Shape

Suitability not total iron

Suitability titanium/nickel/super total

Surface

Uncoated

Tolerance of fit

Tolerance of shank diameter

Tool holding device

HA parallel shank

Twist angle

9° (left)

6 pc.
