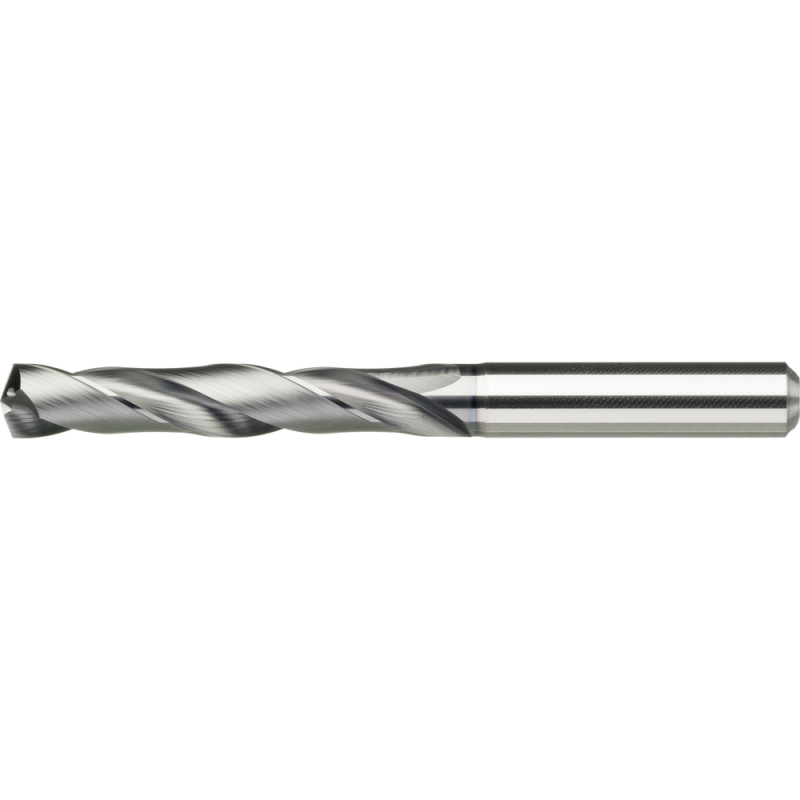

Pilot drill bit SC 5xD 6.02 mm, IC, HA, TiAlNplus HPC

Name: Pilot drill bit SC 5xD 6.02 mm, IC, HA, TiAlNplus HPC
Brand: ATORN
SKU: 1115730602
Availability: OutOfStock

Производитель: ATORN Модель: 58826

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Pilot drill bit SC 5xD 6.02 mm, IC, HA, TiAlNplus HPC

Нет в наличии

0.0 грн.

A dimension:2.46 mm

Angle of the tip - S:140 °

Cantilever length:46 mm

Coating:TiAlN plus

Conical transition neck contour (xsg):46 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Pilot drill bit SC 5xD 6.02 mm, IC, HA, TiAlNplus HPC

0.0 грн.

Описание

Solid carbide pilot drill bit TiAlNplus HPC

For setting a pilot bore for deep-hole drill bits from 12xD
Cutting material: ultra-superfine grain solid carbide TiAlNplus
Precision ground for extreme boring accuracy to meet high dimensional demands
High guidance accuracy thanks to innovative geometry
High-performance coating guarantees high cutting data and service life
The tools are coordinated by geometry and diameter.

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed f steel

0.25 mm/rev

Totally stainless steel suitability

Характеристики

A dimension

2.46 mm

Angle of the tip - S

140 °

Cantilever length

46 mm

Coating

TiAlN plus

Conical transition neck contour (xsg)

46 mm

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

12.02 mm

Cutting diameter min.

2.02 mm

Cutting diameter min./max.

2.02-12.02 mm

Cutting material

Solid carbide

6.02 mm

6 mm

DIN

6537

Effective length

35 mm

fitness hartl total

82 mm

44 mm

Max. drilling depth (D)

5xD

Neck length

44 mm

Packaging unit

140 °

Section shape

Split point

Shank length

36 mm

Shank length calculated

36 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

TiAlN

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

HA parallel shank

Twist angle

30°

Type

HPC UNI

2 pc.
