Precision collet set | radial run out of

ISO 15488 (formerly DIN 6499)

Metallic sealed - For high pressure cooling 100 bar - Seal for IC

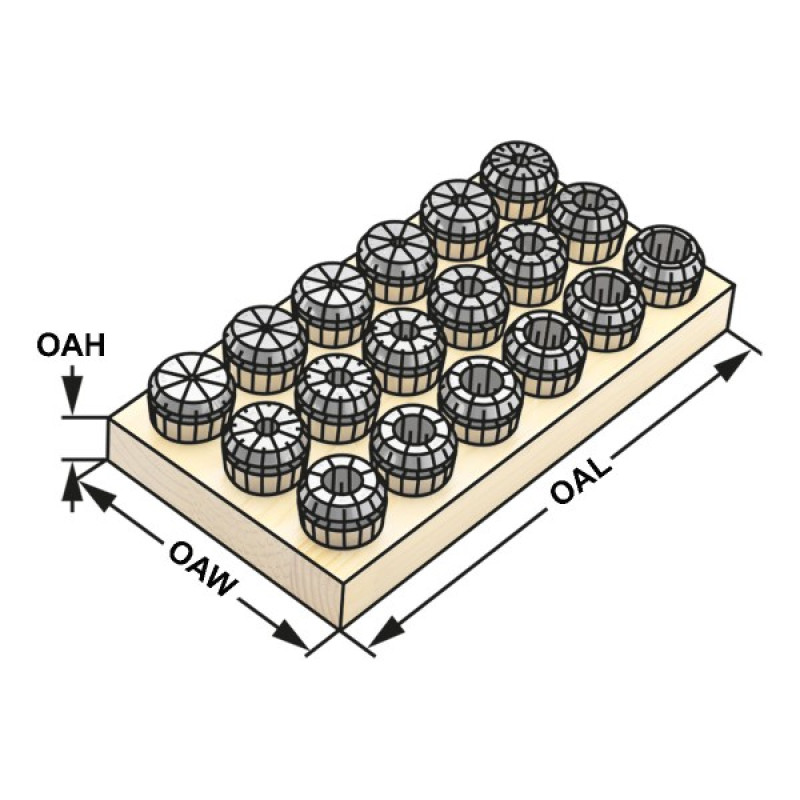

Consisting of: wooden socket 701.20/25.1
and collets:
Ø3-4-5-6-7- 8- 9-10-11-12-14-15-16-18-20

Application:
Metallic sealed for mounting straight-shank tools with coolant-through in collet chucks ISO 15488 (ex. DIN 6499).
Version:
Metallic sealed collets for internal cooling (applicable up to 100 bar).
System concentricity and repetition accuracy 3 µm (3×D, maximum = 50 mm), in conjunction with “KEMMLER Precision collet chuck ER”.
Suitable for:
KEMMLER Precision collet chuck ER or standard collet chuck ISO 15488 (ex. DIN 6499).
Note:
Clamping range h6 (nominal size only).
Metallic sealed collets for internal cooling (applicable up to 100 bar). In order to achieve an optimal sealing the tool must be clamped on the complete length of the ground drill of the collet.
