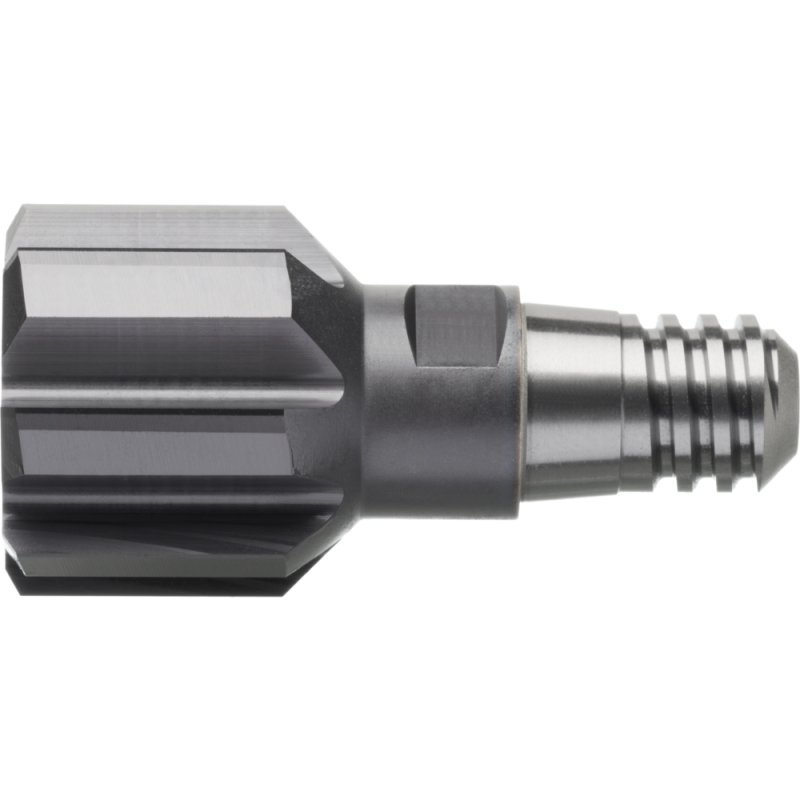

Replaceable head reamer solid carbide size 6 ø10mm H7 with axial coolant, TiAlN (VA), SW6

Name: Replaceable head reamer solid carbide size 6 ø10mm H7 with axial coolant, TiAlN (VA), SW6
Brand: ATORN
SKU: 1636221000
Availability: OutOfStock

Производитель: ATORN Модель: 60672

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Replaceable head reamer solid carbide size 6 ø10mm H7 with axial coolant, TiAlN (VA), SW6

Нет в наличии

0.0 грн.

Coating:TiAlN

Coolant supply:Internal

Cutting data:Cutting angle information - yes

Cutting diameter max.:40 mm

Cutting diameter min.:10 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Replaceable head reamer solid carbide size 6 ø10mm H7 with axial coolant, TiAlN (VA), SW6

0.0 грн.

Описание

Modular system
High-performance exchangeable head reamers

Modular reaming tool system
Diameter 10-40 mm
For through-holes and blind bores
Cutting material: solid carbide, TiAlN-coated
With internal coolant supply
Particularly efficient from machining diameters of 20 mm
Flexible machining depths thanks to various holder lengths
Faster and more secure tool changes without new tool calibration
2 geometries available:
ST - for steel and cast iron (ISO P, K)
VA - for stainless steels (ISO M)
Other designs for the efficient machining of aluminum, titanium, CFRP/GFRP, and hardened materials available on request

Blind hole

Straight-fluted
Axial coolant outlet

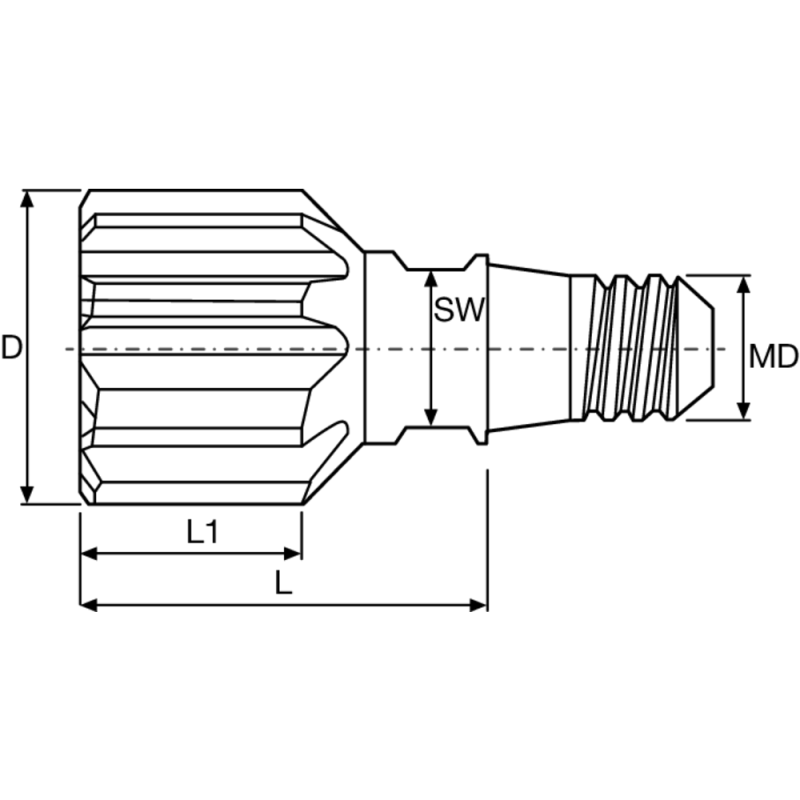

From O 33 mm use exchangeable head holder with enlarged planar support (MD = 16*)

Usage characteristics

austenitic stainless steel
stainless steel duplex
stainless steel ferrit./martens.

Характеристики

Totally stainless steel suitability

Характеристики

Coating

TiAlN

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

40 mm

Cutting diameter min.

10 mm

Cutting diameter min./max.

10-40 mm

Cutting material

Solid carbide

10 mm

Design

Diameter max.

40 mm

Diameter min.

10 mm

Diameter min./max.

10-40 mm

DIN

Company standard

f Stainless steel

0.4

fitness hartl total

Interchangeable head system

WKS6

18 mm

10 mm

Number of teeth

6 pc.

Packaging unit

Shape

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for material group H

Suitable for material group K

Suitable for material group M

Suitable for material group N

Suitable for material group P

Suitable for material group S

Surface

TiAlN

Thread dimension

Tightening torque

5 N·m

Tolerance of fit

Tolerance of hole diameter

Type

HPC VA

Wr. width

6 mm
