SARA-DRILL extension 150mm for boring head A1-55/A2-65

Name: SARA-DRILL extension 150mm for boring head A1-55/A2-65
Brand: SARA
SKU: 1045100055
Availability: OutOfStock

Производитель: SARA Модель: 42773

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

D1:29 mm

Design:150 mm

Designation:A1/A2

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

SARA-DRILL extension 150mm for boring head A1-55/A2-65

0.0 грн.

Описание

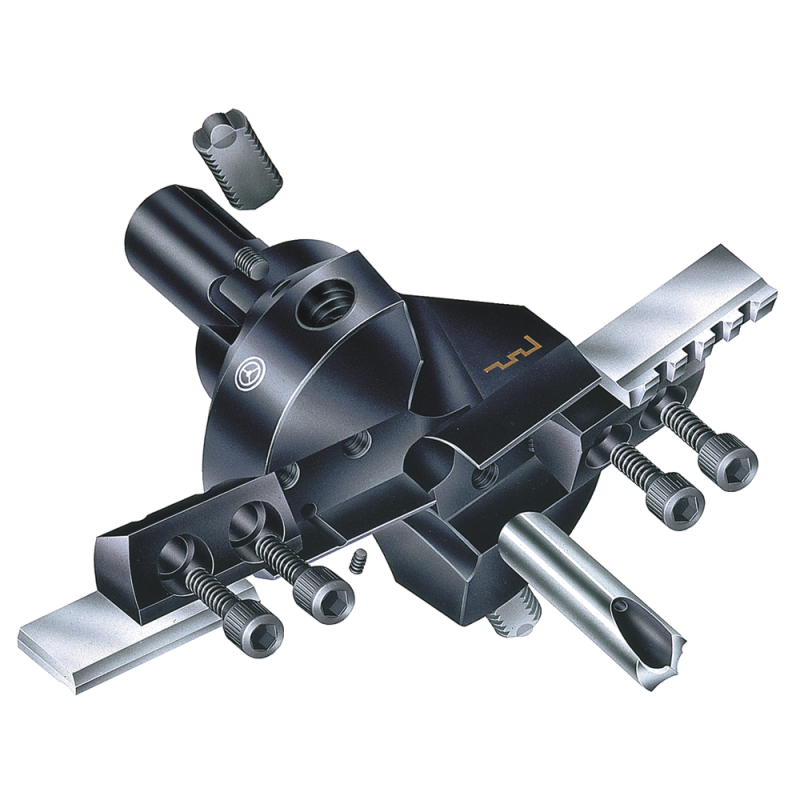

SARADRILL solid drilling tool

Machining of bore holes from O 49 to 270 mm
For machines with low drive power
Low-vibration, equipment-friendly machining with up to 50% less drive power
Drilling in a single operation without centering and pre-drilling
No front face planning required
Cost-efficient boring system, since differences in diameter of up to 30 mm can be machined with one boring head by changing the cutting edges
Variable drilling depths of up to 15 x D due to holding fixture system with pluggable extensions
Internal coolant supply directly to the cutting edge, no high-pressure pump required
For rotating tools, the coolant is supplied via a coolant ring
Short chips due to chip-separating grooves in the roughing blade, no chip removal, even with extremely deep bores
Also for use on vertically operating machines
Low tool costs as wear is limited to the cutting edges and center bit
Unproblematic regrinding of the center bit and the cutting edges (in pairs) using the grinding fixture or the tool grinding machine
Cutting material:
Cutting edge HSS-E-PM ASP30, ASP30 TiN
HSS center bit
For use on all machine tools as a rotating or stationary tool especially for machining large bore diameters on machines with low drive power
Caution: Not suitable for boring out existing holes!

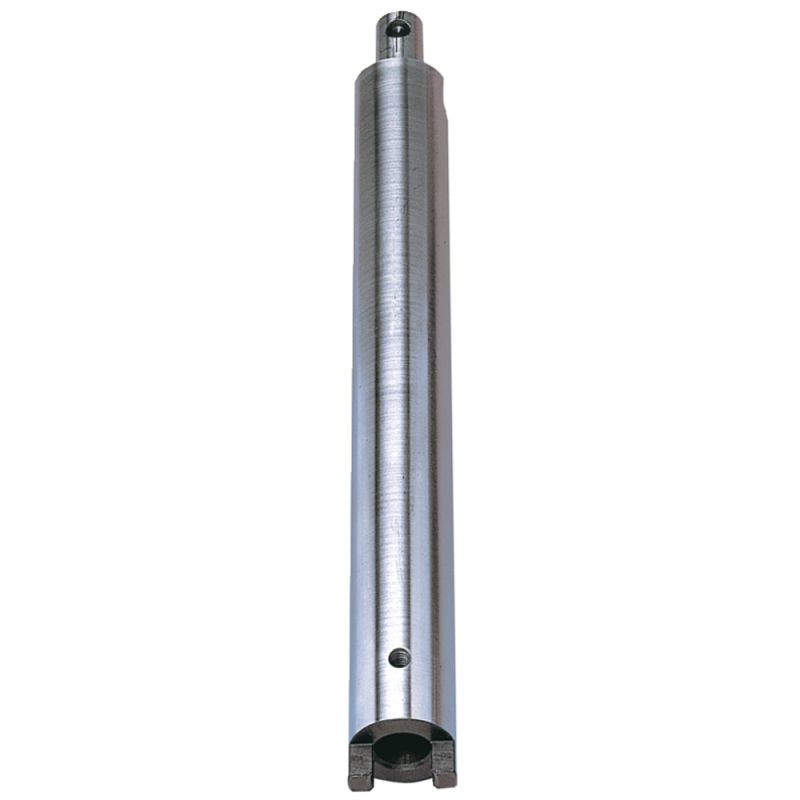

Extension

Характеристики

29 mm

Design

150 mm

Designation

A1/A2

Packaging unit
