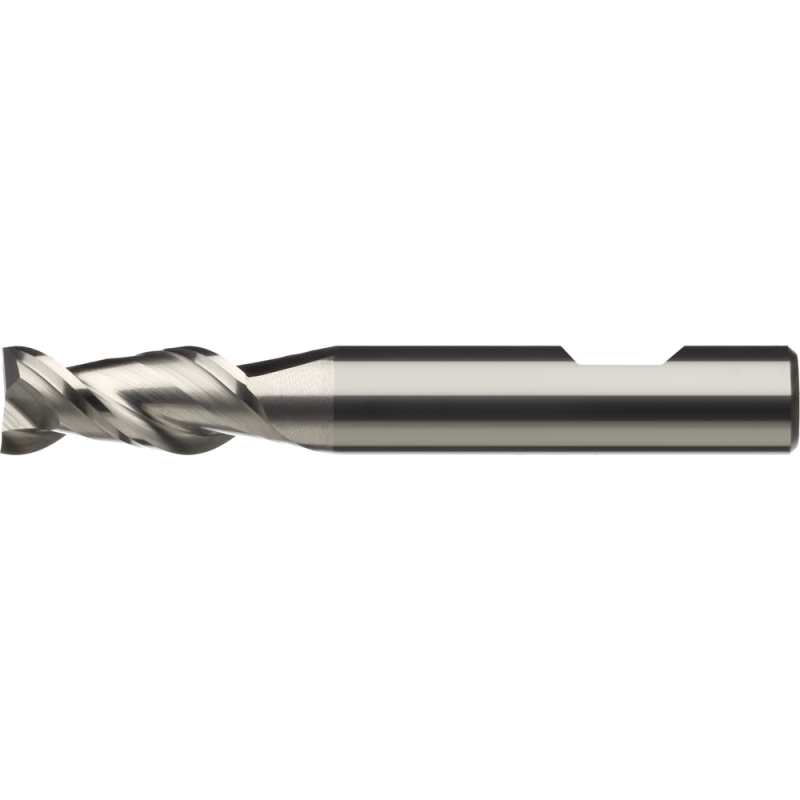

SC Al slot drill 3mm L2=18mm Z=2 HB, edge prot. Chamfer, mirror finish

Name: SC Al slot drill 3mm L2=18mm Z=2 HB, edge prot. Chamfer, mirror finish
Brand: ATORN
SKU: 2492000030
Availability: OutOfStock

Производитель: ATORN Модель: 35968

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

SC Al slot drill 3mm L2=18mm Z=2 HB, edge prot. Chamfer, mirror finish

Нет в наличии

0.0 грн.

Application direction milling:Lining, ramping and drilling

Center cutting:Yes

Coating:ZrCN

Coolant supply:External

Cutting data:Cutting angle information - yes

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

SC Al slot drill 3mm L2=18mm Z=2 HB, edge prot. Chamfer, mirror finish

0.0 грн.

Описание

ISO N
Ultra-N slot drill

With clearance
2 cutting edges, with edge chamfer F
With defined cutting edge rounding
Polished version, sharp-edged, ground
For non-ferrous materials
Cutting material: superfine grain solid carbide, uncoated with mirror finish / polished version
Cutting material: superfine grain solid carbide, ZrCN Ultra-N coated

Standard with driving plane

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
plastic

Характеристики

Feed fz aluminum

0.045 mm/tooth

Totally stainless steel suitability

Характеристики

Application direction milling

Lining, ramping and drilling

Center cutting

Yes

Coating

ZrCN

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

Solid carbide

3 mm

6 mm

2.9 mm

Design

Mirror finish DIN 6535-HB

Diameter max.

20 mm

Diameter min.

3 mm

Diameter min./max.

3-20 mm

Edge protection chamfer length

0.1 mm

Edge protection for chamfer angle

45°

fitness hartl total

fz aluminum

0.013 mm

57 mm

8 mm

18 mm

Overall length

Normal

Packaging unit

Rake angle

20 °

Release length

18 mm

Shape

Corner

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for material group H

Suitable for material group K

Suitable for material group M

Suitable for material group N

Suitable for material group P

Suitable for material group S

Surface

ULTRA N

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

HB parallel shank

Twist angle

45°

Type

2 pc.
