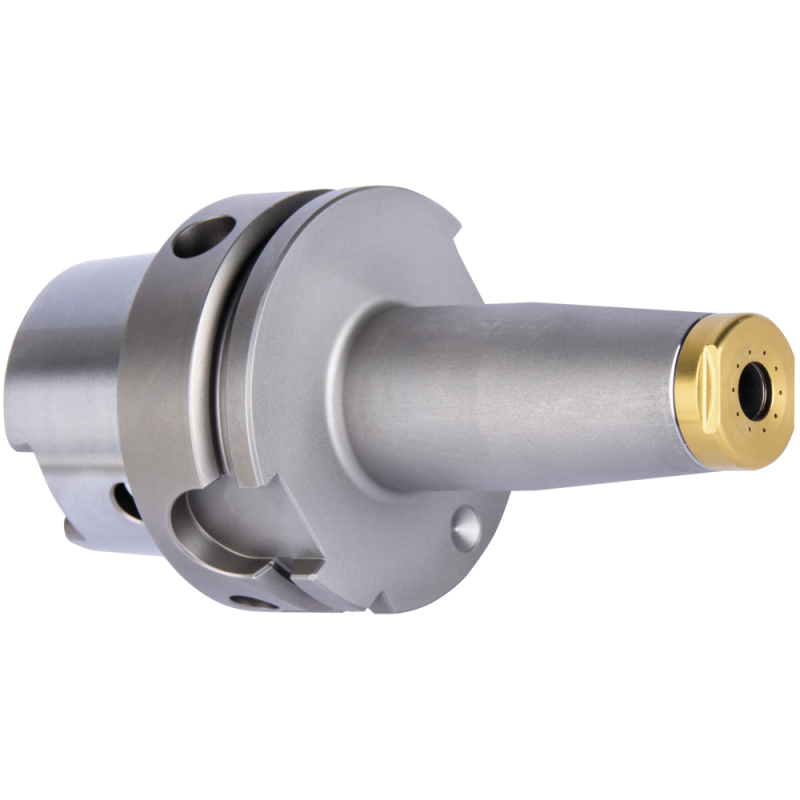

Shrink fit holder DIN69893 HSK-A63 Ø6, A=80mm, gold ring JetSleeve 2®

Name: Shrink fit holder DIN69893 HSK-A63 Ø6, A=80mm, gold ring JetSleeve 2®
Brand: DIEBOLD
SKU: 4303316306
Availability: OutOfStock

Производитель: DIEBOLD Модель: 58263

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

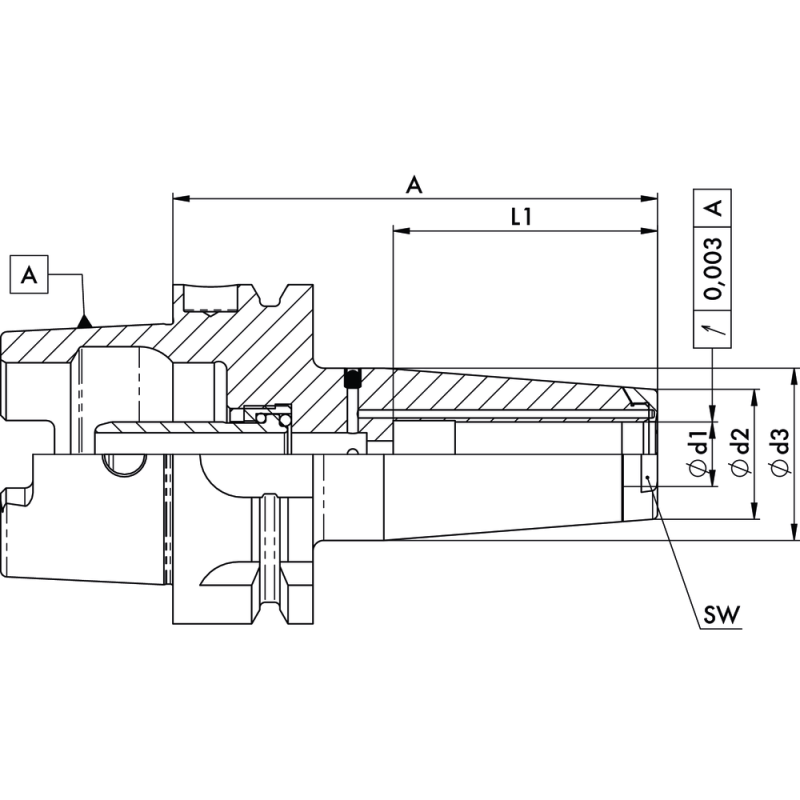

a:80 mm

D1:6 mm

D2:21 mm

D3:27 mm

L1:36 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Shrink fit holder DIN69893 HSK-A63 Ø6, A=80mm, gold ring JetSleeve 2®

0.0 грн.

Описание

JetSleeve 2 ® ThermoGrip ® shrink fit holders

Revolutionary solution for mold engineering and HSC machining
Standard version suitable for air and cooling lubricant, versions for minimum volume lubrication available on request
The coolant is fed via various nozzles directly to the cutting edge. Chips are blown away and not run through.
Up to 300% higher endurance
No surface scratching by chips
Optimum tool holder cooling right through to the cutting edge
Innovation in the JetSleeve 2 ®

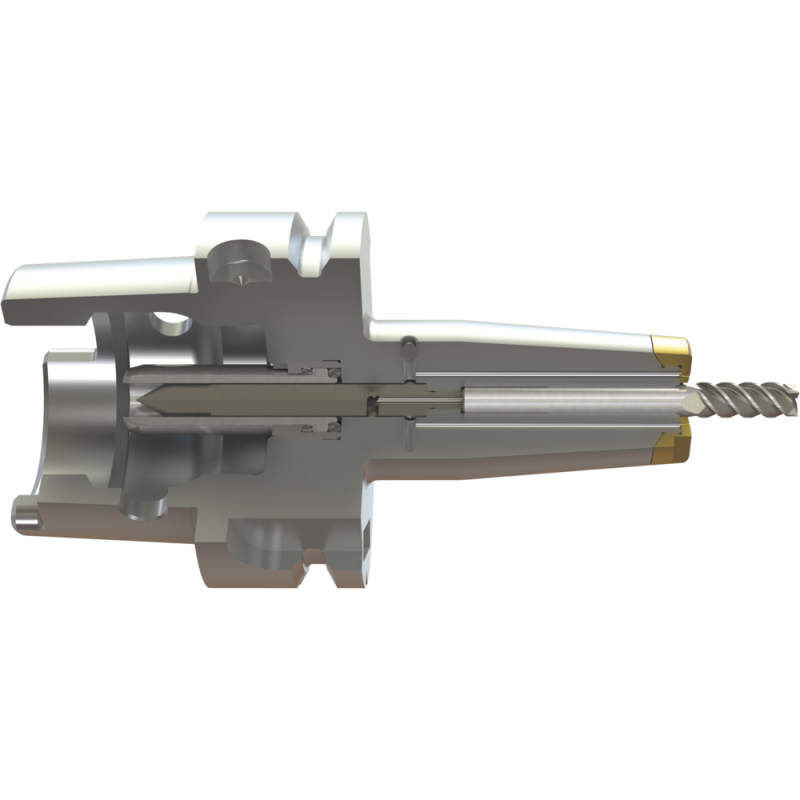

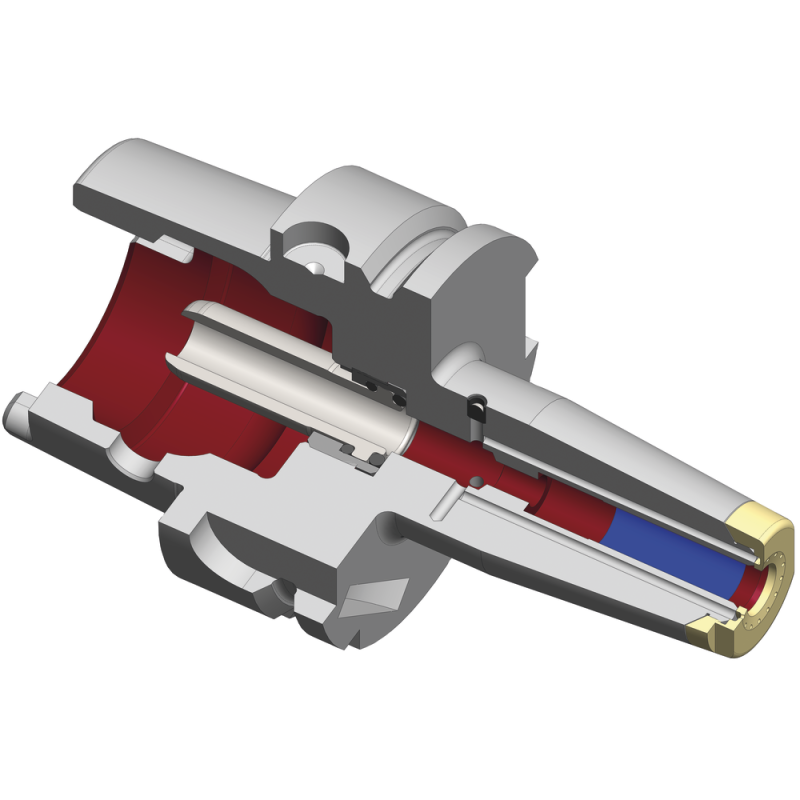

Rotating chuck with media duct, the milling machine does not need to be retrofitted
.Pressure is built up in the nozzle unit, and the flow effect from the nozzles keeps the coolant jet on the milling cutter shank at all times. JetSleeve chucks can be used on all conventional milling machines with internal coolant supply
Suitable for all agents: air, minimum volume lubrication, cutting fluid
Energy efficient and environmentally friendly
Shrinking with screwed-on nozzle cover possible
