Size 5 ART690 Dovetail Grip Clamping System - Double (Gerardi)

Name: Size 5 ART690 Dovetail Grip Clamping System - Double (Gerardi)
Brand: Gerardi
SKU: 12.690.502
Availability: OutOfStock

Производитель: Gerardi Модель: 15456

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Size 5 ART690 Dovetail Grip Clamping System - Double (Gerardi)

Нет в наличии

0.0 грн.

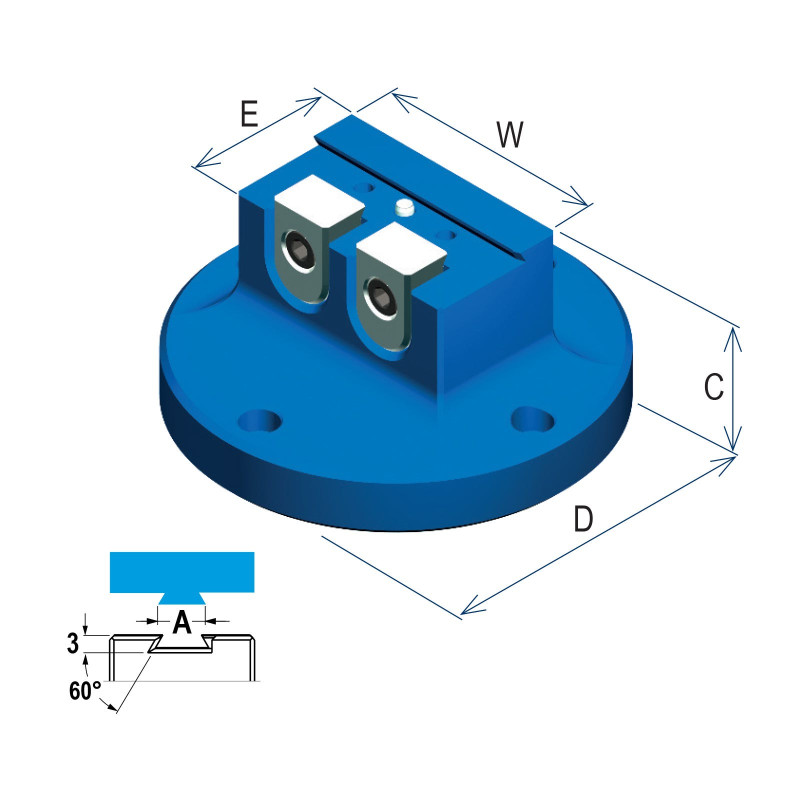

a:38.1

Brand:Gerardi

C:70

Category:Workholding

D:110x110

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Size 5 ART690 Dovetail Grip Clamping System - Double (Gerardi)

0.0 грн.

Описание

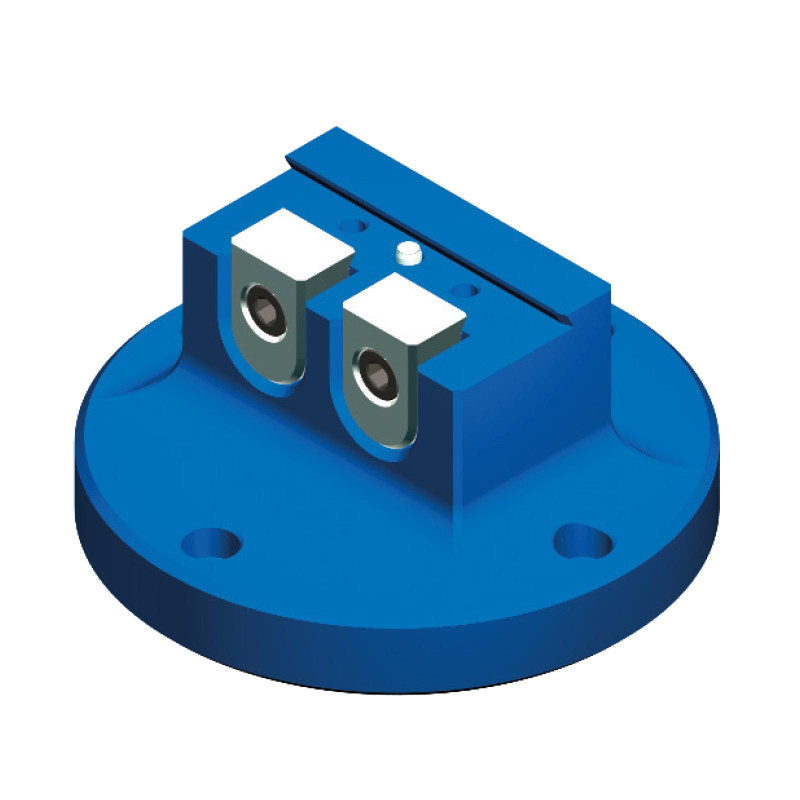

Aluminium body with 2x hardened steel clamps, dovetail widths from 12.7-57mm. The Gerardi Dovetail Grip clamping system ensures secure and accurate clamping of the workpiece with five full sided machining in one set-up.

Aluminium body with 2x hardened steel clamps.
Dovetail widths from 12.7-57mm.
Positioning pin enables fast locating of workpeice and perfect repeatability.
SIMPLE, FAST & STRONG - The dovetail design quickly locks the part in place for extreme clamping strength and rigidity.
SMALL OR LARGE PARTS - Dovetail clamps available in different sizes and configurations. Suitable for any machine.
5 SIDED ACCESS - The most compact design ensures unobstructed machining. Machine all 5 sides in one set-up.
MODULAR - Suitable for use with riser blocks, zero point and quick change tables.

Характеристики

38.1

Brand

Gerardi
