Smoothing tool set 520, 16x16 mm, shank adapter 20x20 & 25x25 mm, no diamond tip

Name: Smoothing tool set 520, 16x16 mm, shank adapter 20x20 & 25x25 mm, no diamond tip
Brand: ZEUS
SKU: 3802000007
Availability: OutOfStock

Производитель: ZEUS Модель: 64784

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Smoothing tool set 520, 16x16 mm, shank adapter 20x20 & 25x25 mm, no diamond tip

Нет в наличии

0.0 грн.

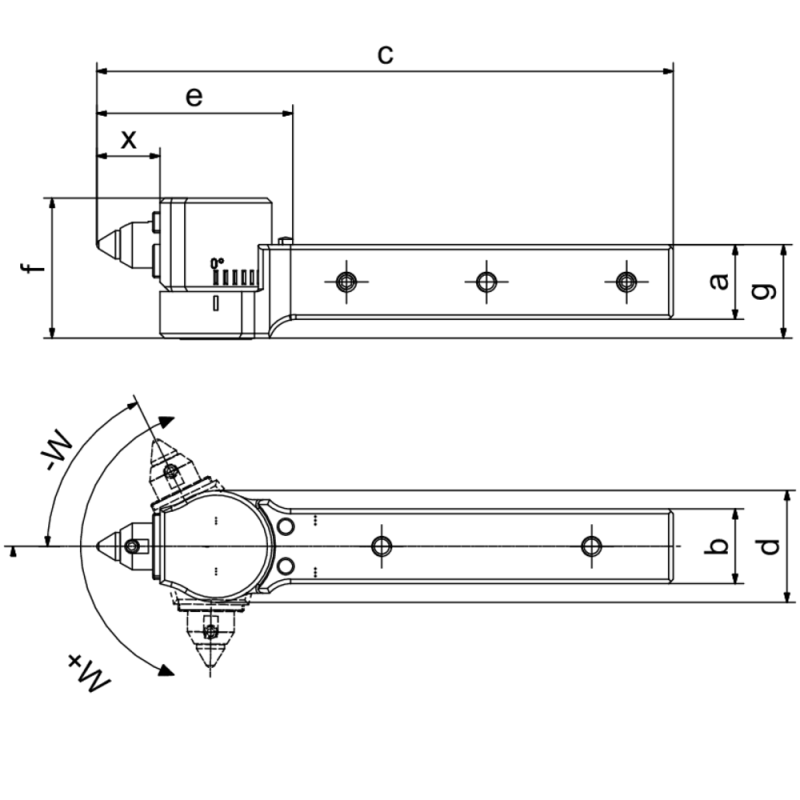

Angle:+90 to -90 °

D:20 mm

Designation:520-16

L:114.5 mm

L1:9.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Smoothing tool set 520, 16x16 mm, shank adapter 20x20 & 25x25 mm, no diamond tip

0.0 грн.

Описание

Smoothing tool SET 510 / 520

The Zeus smoothing tool is an all-rounder in all conventional surface-smoothing operations.
Whether on straight, conical or concave surfaces
Planar sides can also be machined.
Not suitable for interrupted cutting.

2nd generation
Smoothing tool holder SET 520

Properties
- Variably adjustable tool head
- Supplied without smoothing tips
- Tool for universal applications
- Swivel range +/- 90°
- Use up to the collar
- The adjusting options of the tool head allow the smoothing of planar surfaces, as well as conical, convex and concave geometries.
Recommendation
- Polishing speed up to 200 m/min
- Feed up to 0.2 mm/rev
- Workpiece allowance of 0.01 mm (~RZ 10) and 0.02 mm (~RZ 20)
- Cooling lubricant is recommended
Tool holder SET 520-10 right / left including shank adapter 12x12 mm and 16x16 mm
Tool holder SET 520-16 including shank adapter 20x20 mm and 25x25 mm
