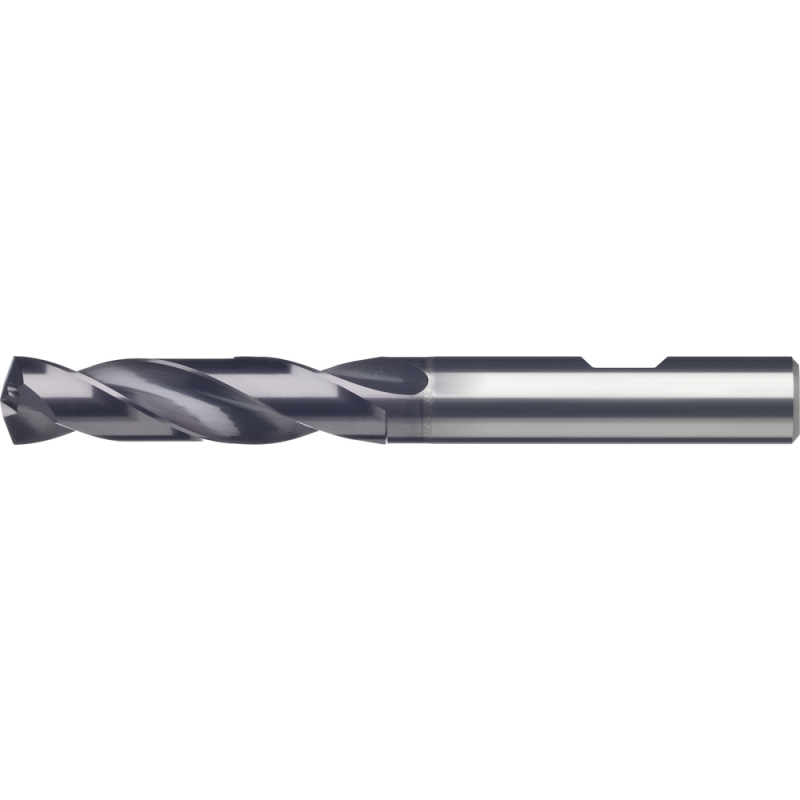

Solid carbide high-performance drill 3xD 10.8mm IC D1=HB TiAlN Ultra-M

Name: Solid carbide high-performance drill 3xD 10.8mm IC D1=HB TiAlN Ultra-M
Brand: ATORN
SKU: 1115490108
Availability: OutOfStock

Производитель: ATORN Модель: 36890

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Solid carbide high-performance drill 3xD 10.8mm IC D1=HB TiAlN Ultra-M

Нет в наличии

0.0 грн.

A dimension:4.42 mm

Angle of the tip - S:140 °

Cantilever length:57 mm

Coating:TiAlN

Conical transition neck contour (xsg):57 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Solid carbide high-performance drill 3xD 10.8mm IC D1=HB TiAlN Ultra-M

0.0 грн.

Описание

Especially for stainless steel
Solid carbide high-performance drill bit Ultra-M 3D

Special geometry, facet-ground, maximum tool life, high process reliability
Shank design:
HA with coolant bore, smooth straight shank, DIN 6535 HA
HB with coolant bore straight shank DIN 6535 HB
Cutting material: solid carbide, TiAlN-Ultra-M-coated
True-running accuracy of the tool when clamped max. 0.02 mm
Particularly suitable for stainless steel and superalloys

Usage characteristics

austenitic stainless steel
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Totally stainless steel suitability

Характеристики

A dimension

4.42 mm

Angle of the tip - S

140 °

Cantilever length

57 mm

Coating

TiAlN

Conical transition neck contour (xsg)

57 mm

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

20.0 mm

Cutting diameter min.

3.0 mm

Cutting diameter min./max.

3.0-20.0 mm

Cutting material

Solid carbide

Cutting speed (brass long)

Cutting speed (bronze long)

Cutting speed (bronze short)

Cutting speed (plastic)

10.80 mm

12 mm

Design

DIN

6537

Effective length

40 mm

Feed f stainless steel

0.16 mm/rev

fitness hartl total

102 mm

55 mm

Max. drilling depth (D)

3xD

Neck length

55 mm

Packaging unit

140 °

Section shape

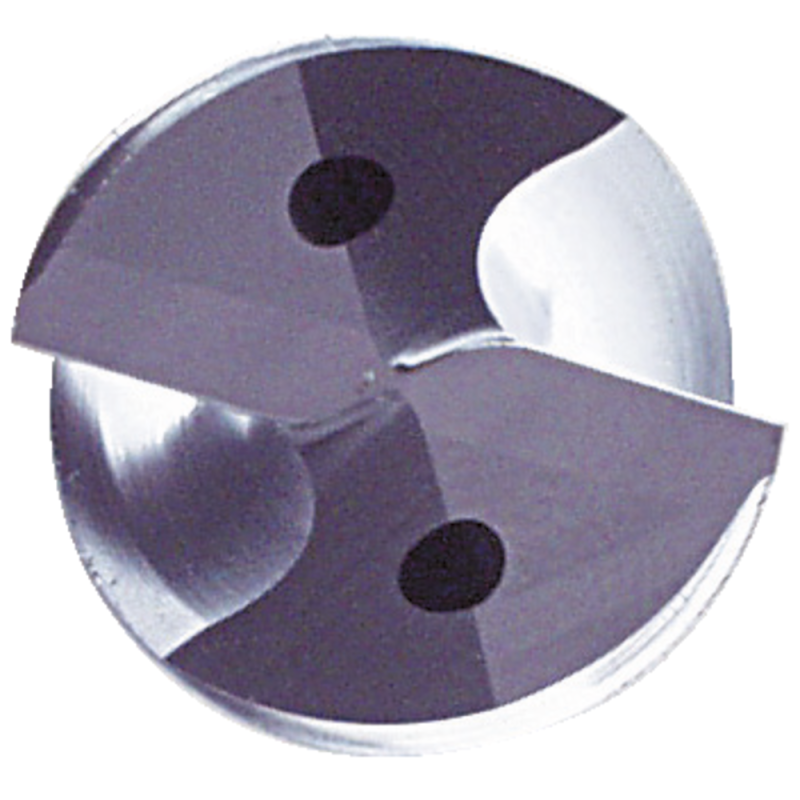

Split point

Shank length

45 mm

Shank length calculated

45 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

ULTRA M

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

HB parallel shank

Twist angle

30°

Type

HPC VA

2 pc.
