Solid carbide high-performance drill 3xD 4.6mm IC D1=HB TiAlN Ultra-M

Name: Solid carbide high-performance drill 3xD 4.6mm IC D1=HB TiAlN Ultra-M
Brand: ATORN
SKU: 1115490046
Availability: OutOfStock

Производитель: ATORN Модель: 36829

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Solid carbide high-performance drill 3xD 4.6mm IC D1=HB TiAlN Ultra-M

Нет в наличии

0.0 грн.

A dimension:1.88 mm

Angle of the tip - S:140 °

Cantilever length:26 mm

Coating:TiAlN

Conical transition neck contour (xsg):26 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Solid carbide high-performance drill 3xD 4.6mm IC D1=HB TiAlN Ultra-M

0.0 грн.

Описание

Especially for stainless steel

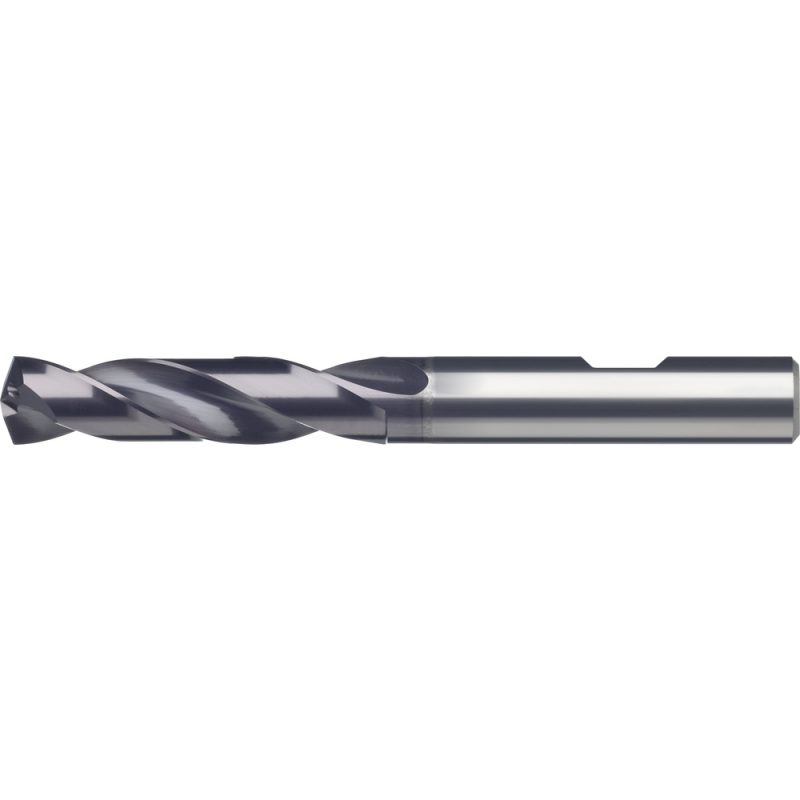

Solid carbide high-performance drill bit Ultra-M 3D

Special geometry, facet-ground, maximum tool life, high process reliability
Shank design:
HA with coolant bore, smooth straight shank, DIN 6535 HA
HB with coolant bore straight shank DIN 6535 HB
Cutting material: solid carbide, TiAlN-Ultra-M-coated
True-running accuracy of the tool when clamped max. 0.02 mm
Particularly suitable for stainless steel and superalloys

Usage characteristics

austenitic stainless steel
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Totally stainless steel suitability

Характеристики

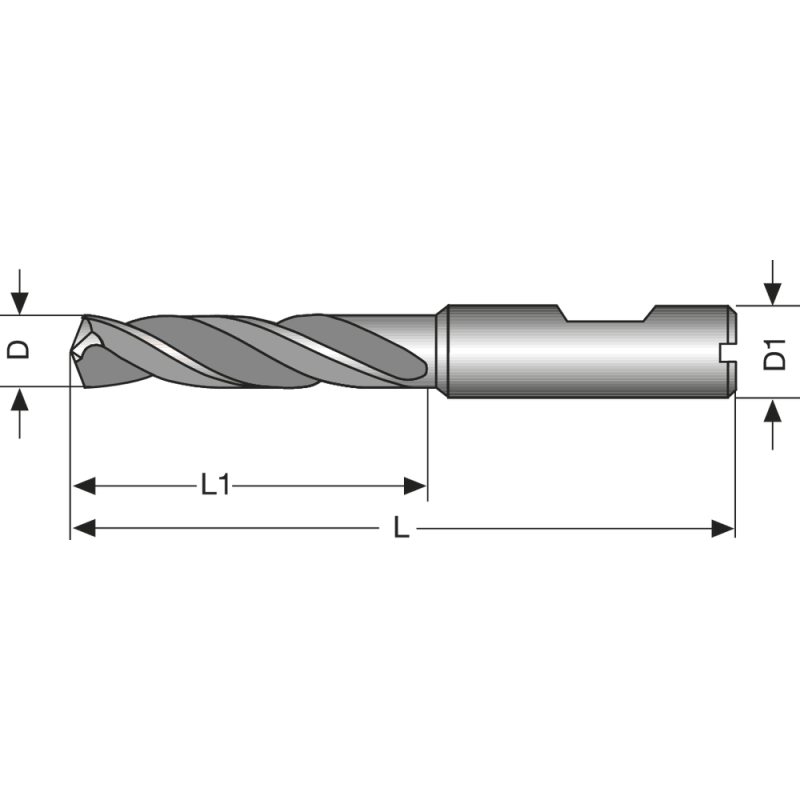

A dimension

1.88 mm

Angle of the tip - S

140 °

Cantilever length

26 mm

Coating

TiAlN

Conical transition neck contour (xsg)

26 mm

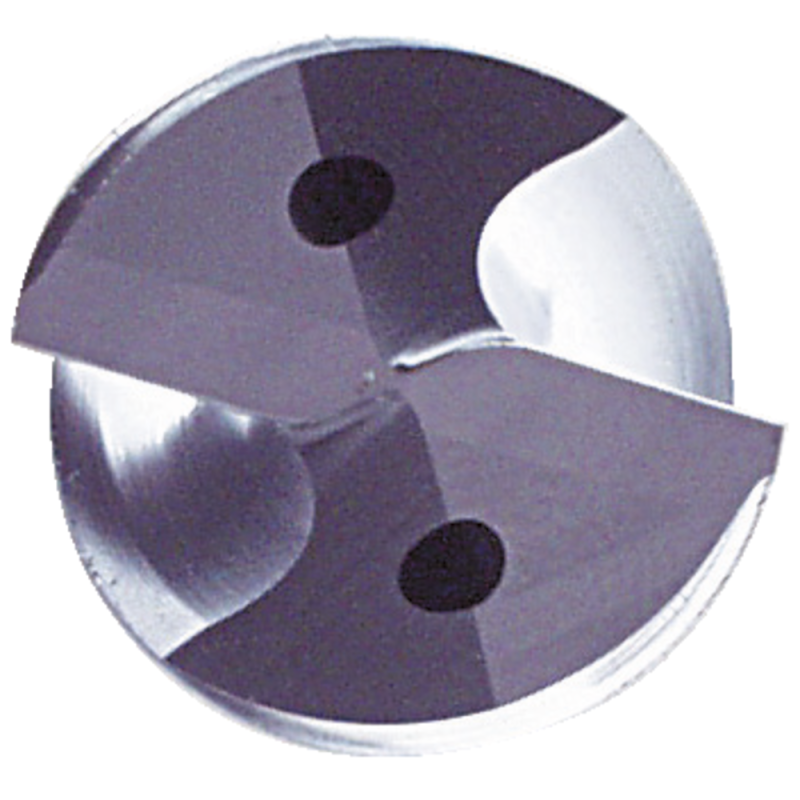

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting diameter max.

20.0 mm

Cutting diameter min.

3.0 mm

Cutting diameter min./max.

3.0-20.0 mm

Cutting material

Solid carbide

Cutting speed (brass long)

Cutting speed (bronze long)

Cutting speed (bronze short)

Cutting speed (plastic)

4.60 mm

6 mm

Design

DIN

6537

Effective length

17 mm

Feed f stainless steel

0.09 mm/rev

fitness hartl total

66 mm

24 mm

Max. drilling depth (D)

3xD

Neck length

24 mm

Packaging unit

140 °

Section shape

Split point

Shank length

40 mm

Shank length calculated

40 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

ULTRA M

Tolerance of cutting edge diameter

Tolerance of shank diameter

Tool holding device

HB parallel shank

Twist angle

30°

Type

HPC VA

2 pc.
