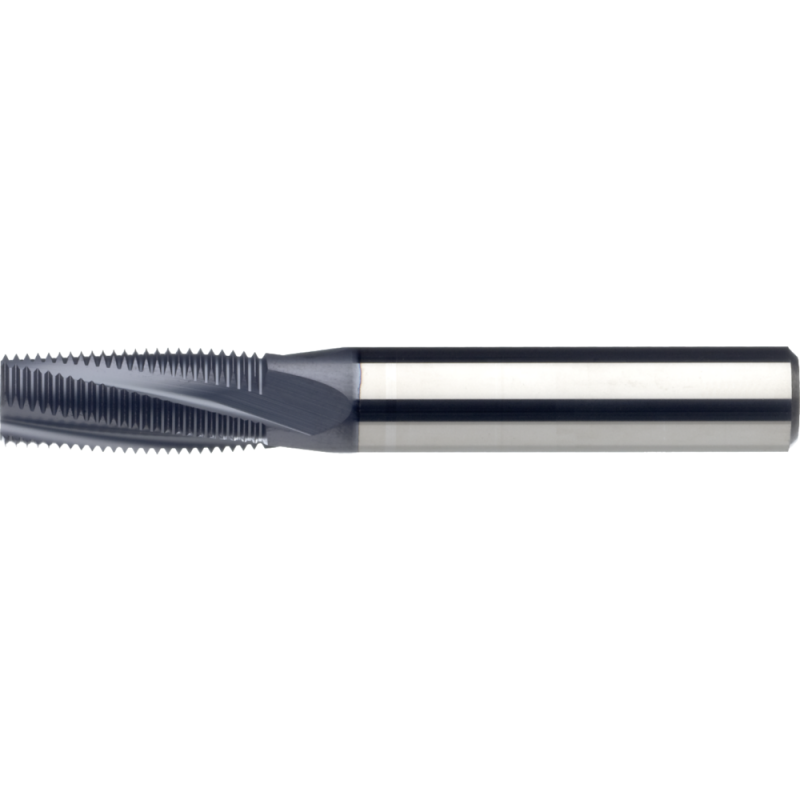

Solid carbide thread mill ISO 0.5 MTB06038C10 TiAlN

Name: Solid carbide thread mill ISO 0.5 MTB06038C10 TiAlN
Brand: ATORN
SKU: 2580020002
Availability: OutOfStock

Производитель: ATORN Модель: 43070

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Solid carbide thread mill ISO 0.5 MTB06038C10 TiAlN

Нет в наличии

0.0 грн.

Coolant supply:Internal

Cutting data:Cutting angle information - yes

Cutting material:Solid carbide

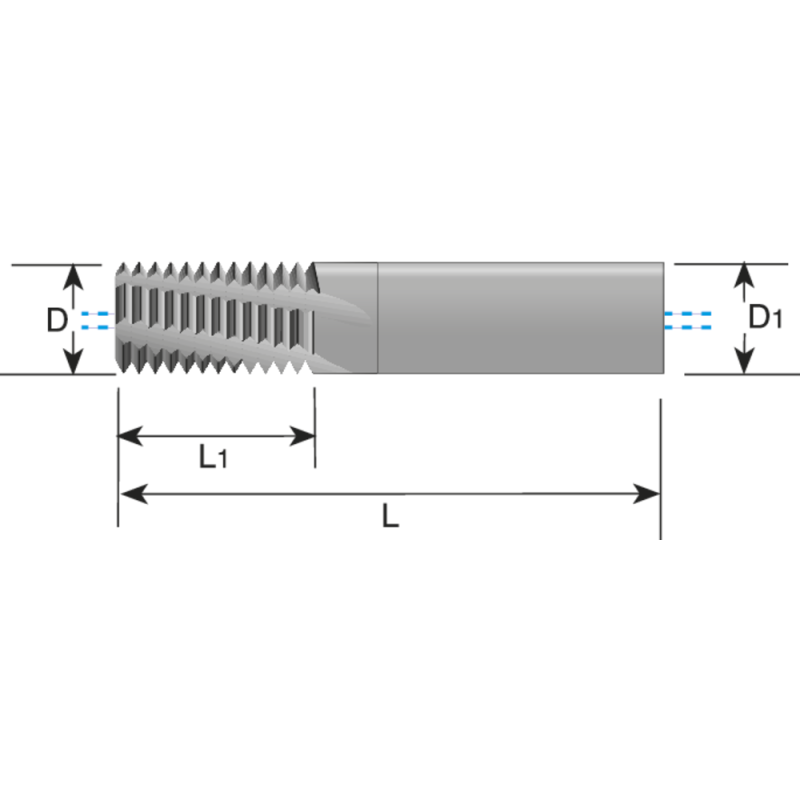

D:3.8 mm

D1:6 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Solid carbide thread mill ISO 0.5 MTB06038C10 TiAlN

0.0 грн.

Описание

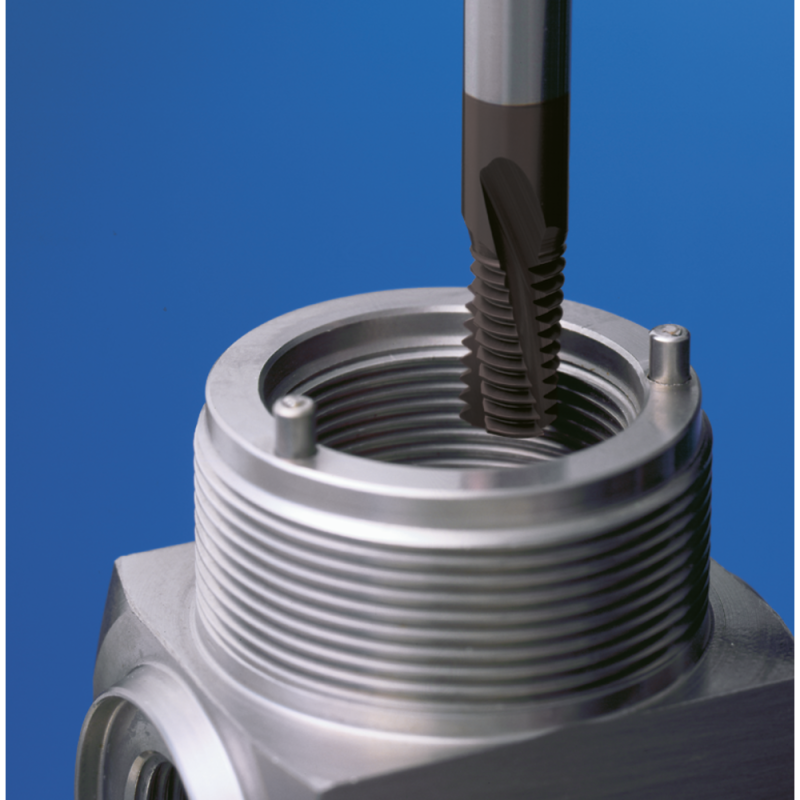

Thread end milling cutter

The thread is machined in just one operation
Chip flutes permit an easy cut
Short machine times thanks to multiple (3-6) cutting edges
Operating range from dimension D = 2.2 mm
Allows thread cutting in blind bores up to the shoulder
One tool for right-hand and left-hand threads
One tool for material groups P, M, K, S and H
Excellent surface finish quality
Long service life due to special multi-layer coating
Low cutting pressure makes it possible to machine thin-walled workpieces
Cutting material: AMT7 solid carbide, multi-layer TiAlN coating for universal applications
Through-hole version (internal cooling outlet in flute) available on request!
Solid carbide thread end milling cutter for the following thread types available on request:
-UN
-BSPT
-NPT
-NPS
-NPTF
-NPSF
-external threads, metr. full profile
-external threads, UN

Metric, full profile, ISO 60°, internal, with internal coolant supply

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
graphite
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed fz steel

0.03 mm/tooth

Totally stainless steel suitability

Характеристики

Coolant supply

Internal

Cutting data

Cutting angle information - yes

Cutting material

Solid carbide

3.8 mm

6 mm

Designation

MTB06038C10 0.5 ISO

f steel 1000

0.03 mm/rev

Fine thread

MF5

fitness hartl total

fz steel 1000

0.03 mm

58 mm

10.3 mm

Max. thread depth

2xD

Packaging unit

Pitch

0.5 mm

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for thread type

M | ML | MF | MF-L

Surface

TiAlN

Threaded hole type

Clearance/blind hole ≤ 2xD

Tolerance of shank diameter

Tool holding device

HA parallel shank

3 pc.
