Solid carbide thread mill ISO M1x0.25 MTS03007C2 AMT7 TiAlN

Name: Solid carbide thread mill ISO M1x0.25 MTS03007C2 AMT7 TiAlN
Brand: ATORN
SKU: 2580100010
Availability: OutOfStock

Производитель: ATORN Модель: 43072

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Solid carbide thread mill ISO M1x0.25 MTS03007C2 AMT7 TiAlN

Нет в наличии

0.0 грн.

Application milling:HSC

Coolant supply:External

Cutting data:Cutting angle information - yes

Cutting material:Solid carbide

D:0.72 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Solid carbide thread mill ISO M1x0.25 MTS03007C2 AMT7 TiAlN

0.0 грн.

Описание

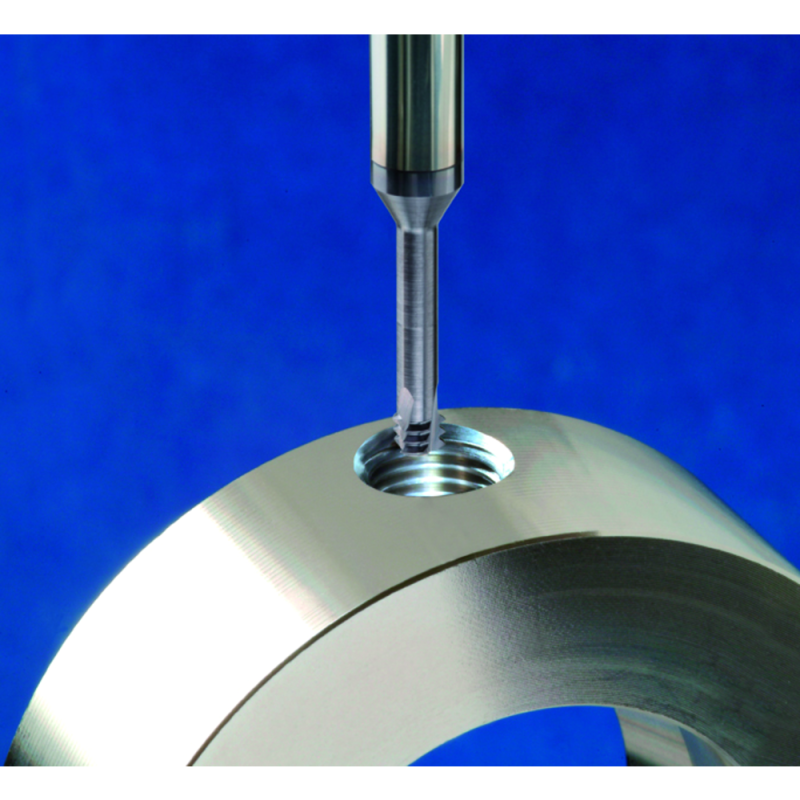

Thread end milling cutter for small bores

Especially for small bores, with straight shank
Thread cutting from M1 x 0.25 mm, thread depth up to 2 x D1
Version for thread depths up to 3 x D1 available on request
Suitable for HSC, extremely low cutting pressure, excellent surface finish quality
Allows thread cutting in blind bores up to the shoulder
Long service life due to special multi-layer coating
One tool for right-hand and left-hand threads
Cutting material: AMT7 solid carbide, multi-layer TiAlN coating for universal applications
MTSH version for hard machining up to 62 HRC available on request!

Metric, full profile, ISO 60°, internal

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
graphite
plastic
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based >= 30 HRc
titanium alloys

Характеристики

Feed fz steel

0.04 mm/tooth

Totally stainless steel suitability

Характеристики

Application milling

HSC

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting material

Solid carbide

0.72 mm

3 mm

Designation

MTS03007C2 0.25 ISO

Effective length thread milling

2.5 mm

f steel 1000

0.01 mm/rev

fitness hartl total

fz steel 1000

0.01 mm

39 mm

2.5 mm

Max. thread depth

2xD

Packaging unit

Pitch

0.25 mm

Standard thread

Suitability not total iron

Suitability titanium/nickel/super total

Suitable for thread

M1-M20

Suitable for thread type

M | ML | MF | MF-L

Surface

TiAlN

Threaded hole type

Clearance/blind hole ≤ 2xD

Tolerance of shank diameter

Tool holding device

HA parallel shank

3 pc.
