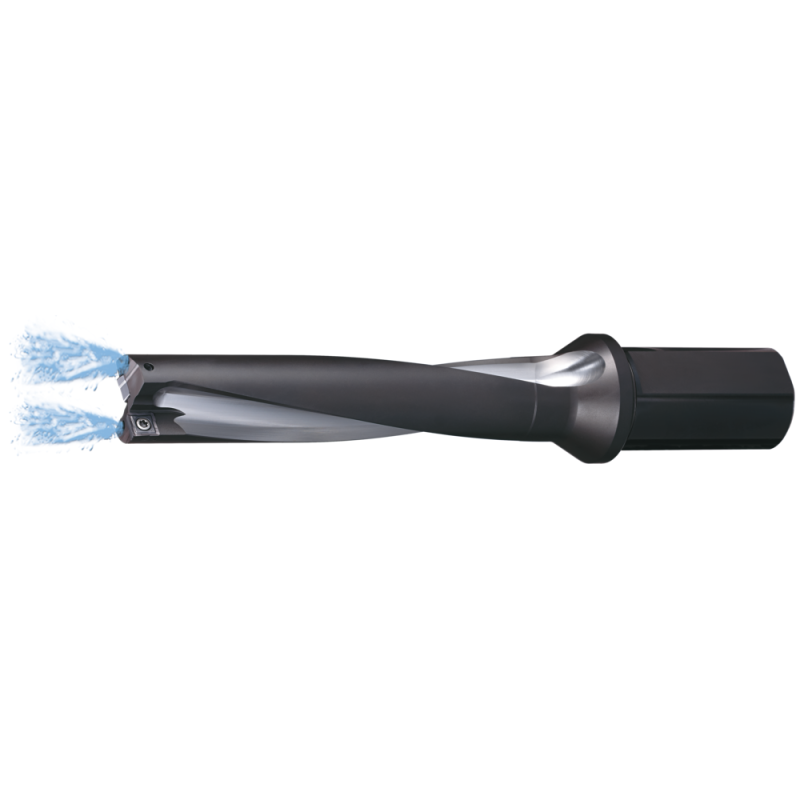

Solid indexable insert drill P5D 5xD 34 mm

Производитель: OSG Модель: 47902

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

a:1.1 mm

Coolant design:Internal axial

Coolant supply:Internal axial

Cutting data:Cutting angle information - yes

D:34 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Solid indexable insert drill P5D 5xD 34 mm

0.0 грн.

Описание

Range expanded
Indexable inserts solid drill bits PHOENIX PD

Optimized substrate geometry for increased stability, improved chip removal and reduced cutting forces
Available in tool lengths of 2xD, 3xD, 4xD and 5xD
Diameter 12-63mm
Wide range of applications in steel, stainless steel, cast iron and aluminum materials
Short chips due to additional chip breaker in the chip flute
High efficiency thanks to 4 effective cutting edges per indexable insert
Same indexable insert can be used as center and peripheral plate
With internal coolant supply
Please note: Supplied without chuck key (Torx Plus), please order separately!

P5D - 5xD

Bore tolerances:
O 15-20.5 mm > 0/+0.3 mm; O 21-49mm > 0/+0.4mm; O 50-63mm > 0/+0.5mm

High efficiency thanks to 4 effective cutting edges per indexable insert (from O 15 mm)
Please note: Supplied without clamping key (Torx Plus), please order separately.

Характеристики

1.1 mm

Coolant design

Internal axial

Coolant supply

Internal axial

Cutting data

Cutting angle information - yes

34 mm

D max.

36.2 mm

40 mm
