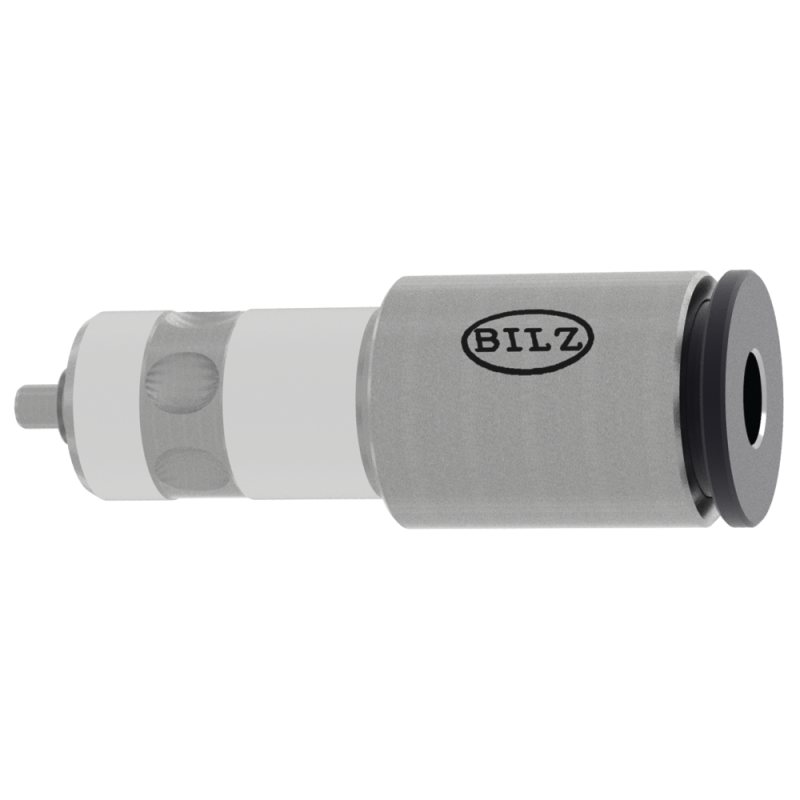

STH3 synchro tool head for M5; M6; M8 - ER20

Name: STH3 synchro tool head for M5; M6; M8 - ER20
Brand: BILZ
SKU: 4421102001
Availability: OutOfStock

Производитель: BILZ Модель: 59669

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

STH3 synchro tool head for M5; M6; M8 - ER20

Нет в наличии

0.0 грн.

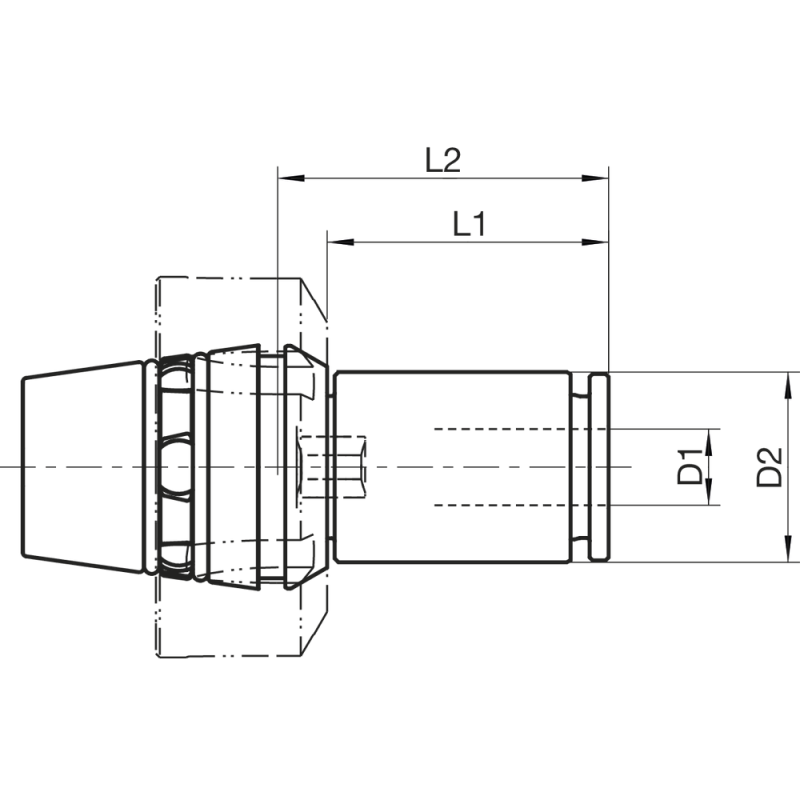

D1:6 mm

D2:15.8 mm

for tap M:M5 M6 M8

for type:3

L1:35 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

STH3 synchro tool head for M5; M6; M8 - ER20

0.0 грн.

Описание

ER synchro insert STA
The STA ( Synchro Tapping Adaptor ) synchro insert was specially developed for ER collet holding fixtures and allows tapping and forming on machines with synchronized spindles .

For ER collet holding fixtures and powered tools
Compensation for synchronization errors
Minimum length compensation under compression and tension
Minimal strain on the thread flanks
Compact design
Internal coolant supply suitable up to 50 bar
Suitable for left-hand and right-hand thread
Only used standard clamping nuts in accordance with SO15488 (DIN6499)
Not for sealed nuts or mini nuts

Synchro tool head STH

Use for STL synchro tool fixture
Length compensation: +0.5 mm / -0.2 mm

The STA ( S ynchro Tapping A daptor ) synchro insert was specially developed for ER collet holding fixtures and allows tapping and forming on machines with synchronized spindles.

Характеристики

6 mm

15.8 mm

for tap M

M5 M6 M8

for type

35 mm

31 mm

Packaging unit

Quadratic

4.9 mm
