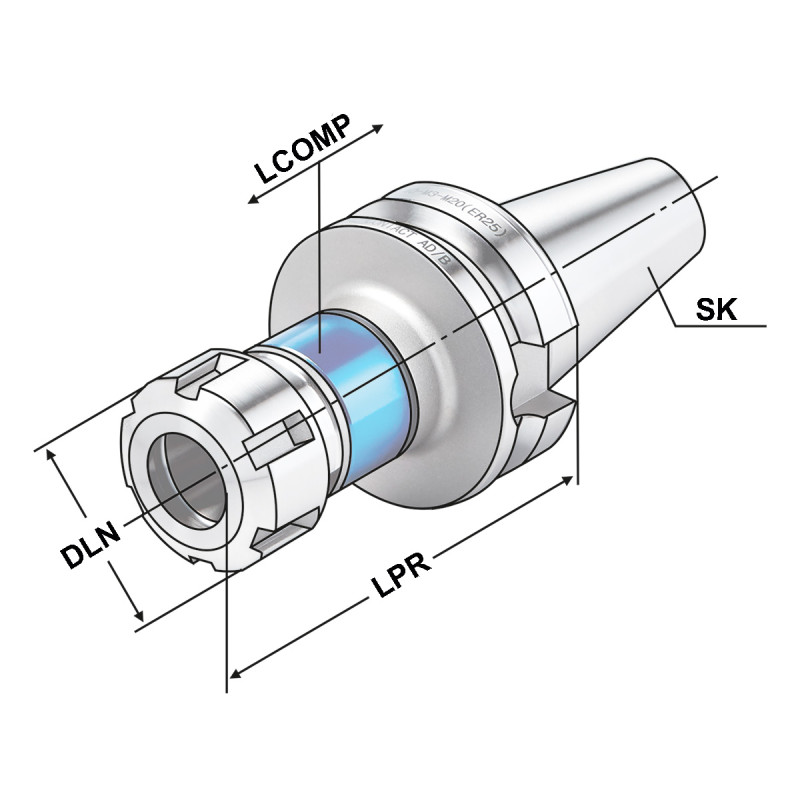

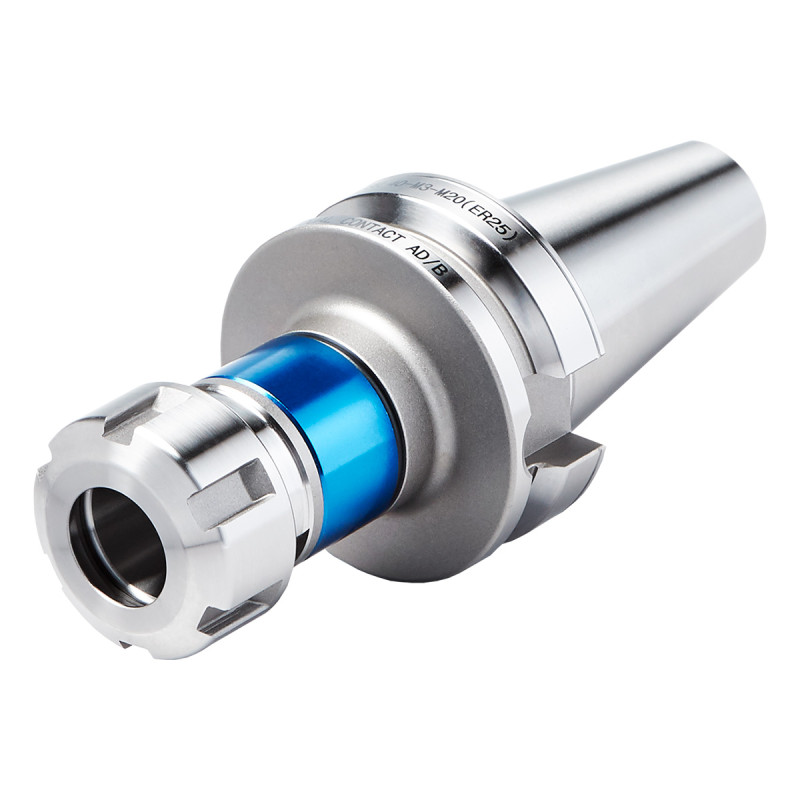

Tapping chucks for synchronization BT 40 - M3-M20 - 89 | HE 25

Name: Tapping chucks for synchronization BT 40 - M3-M20 - 89 | HE 25
Brand: Kemmler GmbH
SKU: DC.406.16.02.16
Availability: OutOfStock

Производитель: Kemmler GmbH Модель: 158569

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Tapping chucks for synchronization BT 40 - M3-M20 - 89 | HE 25

Нет в наличии

0.0 грн.

ADINTMS:DUAL CONTACT ~ISO 7388-2

ADINTWS:ISO 15488 thread cutting chucks

Balancing quality:G6.3 | 15,000 rpm

CNSC:JD/JF (AD/B)

DCONWS:M3 - M20

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Tapping chucks for synchronization BT 40 - M3-M20 - 89 | HE 25

0.0 грн.

Описание

~ ISO 7388-2 JD/JF [JIS B 6339 AD/B] | DC

DUAL CONTACT | with face contact

Application:
For machining centers with synchronous spindle.

Note:
Synchro tapping chucks compensate synchronization errors.Minimal length compensation on compression and expansion balances very small pitch differences between synchro spindle and tap, which can cause high frictional forces on the thread flanks.A possible increase of axial force during the tapping process is reduced to a minimum.Suitable for internal coolant.Coolant pressure up to max. 100 bar.

Delivery:
With balanced clamping nut
