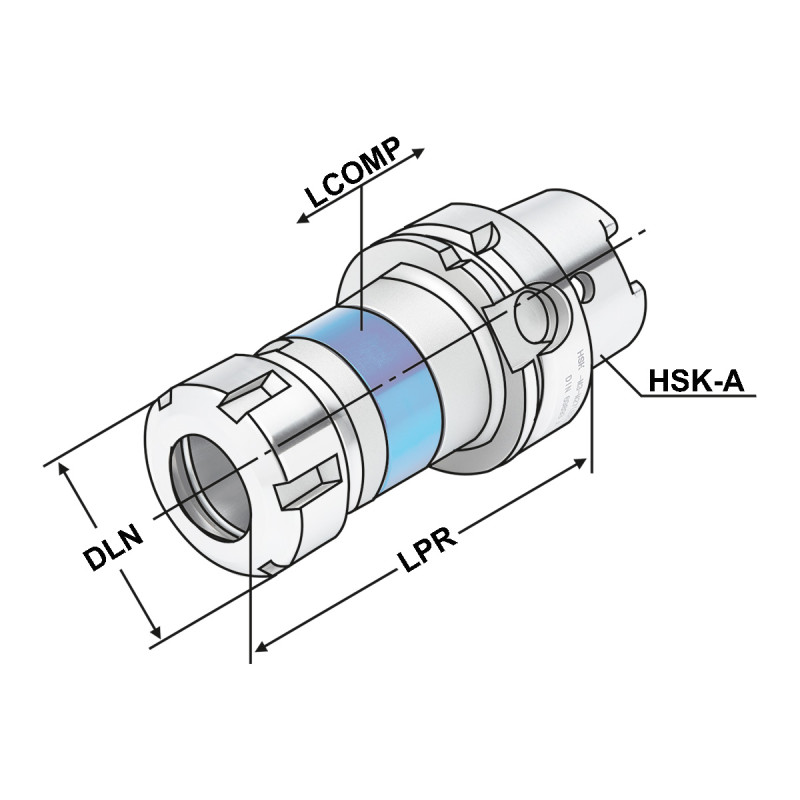

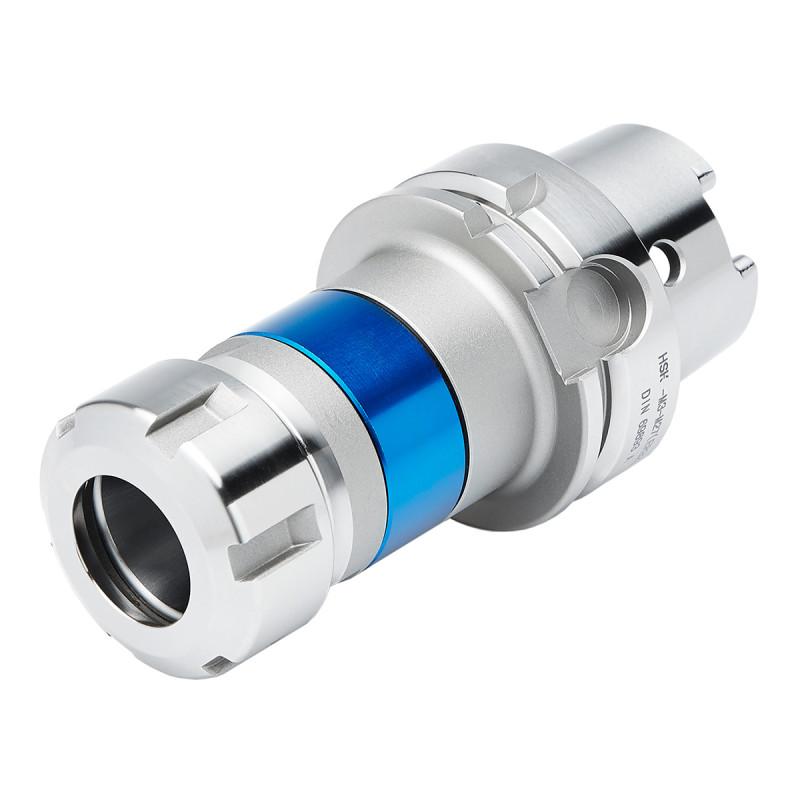

Tapping chucks for synchronization HSK 100 - M3-M33 - 136 | HE 40

Name: Tapping chucks for synchronization HSK 100 - M3-M33 - 136 | HE 40
Brand: Kemmler GmbH
SKU: A100.16.02.26
Availability: OutOfStock

Производитель: Kemmler GmbH Модель: 157833

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Tapping chucks for synchronization HSK 100 - M3-M33 - 136 | HE 40

Нет в наличии

0.0 грн.

ADINTMS:ISO 12164 (HSK-A)

ADINTWS:ISO 15488 thread cutting chucks

Balancing quality:G6.3 | 15,000 rpm

Clamping range:M3 - M33

DCONWS:M3 - M33

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Tapping chucks for synchronization HSK 100 - M3-M33 - 136 | HE 40

0.0 грн.

Описание

ISO 12164 [DIN 69893] | HSK-A

Application:
For machining centers with synchronous spindle.

Note:

Synchro tapping chucks compensate synchronization errors.
Minimal length compensation on compression and expansion balances very small pitch differences between synchro spindle and tap, which can cause high frictional forces on the thread flanks.
A possible increase in axial force during the tapping process is reduced to a minimum.
Suitable for internal coolant.
Coolant pressure up to max. 100 bar.

Delivery:
With balanced clamping nut
