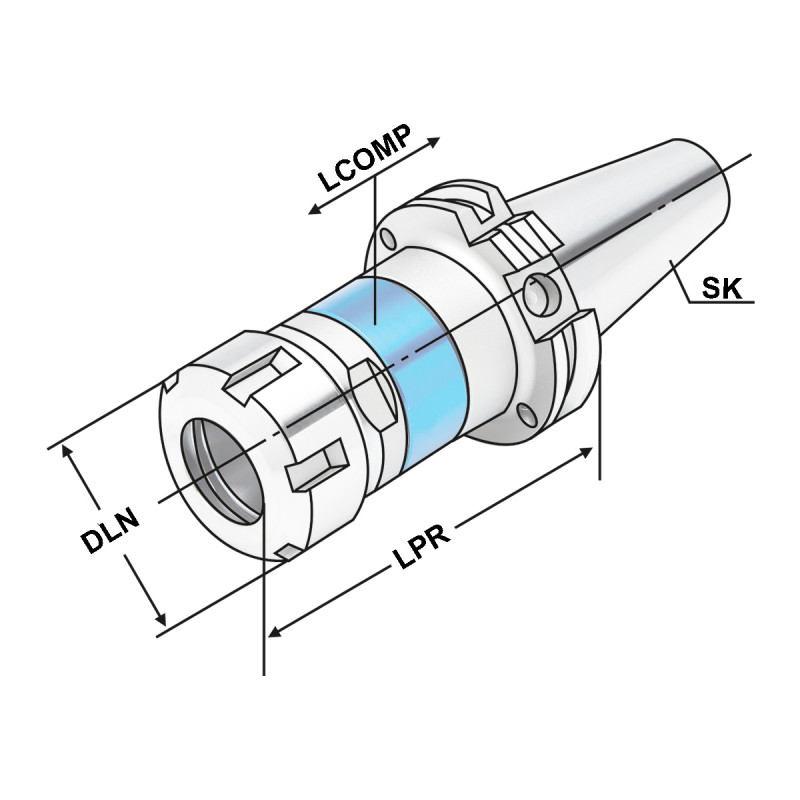

Tapping chucks for synchronization SK 40 - M3-M12 - 79 | HE 16 | Mini

Name: Tapping chucks for synchronization SK 40 - M3-M12 - 79 | HE 16 | Mini
Brand: Kemmler GmbH
SKU: 403.16.02.10.M
Availability: OutOfStock

Производитель: Kemmler GmbH Модель: 158017

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Tapping chucks for synchronization SK 40 - M3-M12 - 79 | HE 16 | Mini

Нет в наличии

0.0 грн.

ADINTMS:ISO 7388-1 (DIN 69871)

ADINTWS:ISO 15488 thread cutting chucks

Balancing quality:G6.3 | 15,000 rpm

CNSC:AD/AF (AD/B)

DCONWS:M3 - M12

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Tapping chucks for synchronization SK 40 - M3-M12 - 79 | HE 16 | Mini

0.0 грн.

Описание

ISO 7388-1 AD/AF [DIN 69871 AD/B]

Application:
For machining centers with synchronous spindle.

Note:

Synchro tapping chucks compensate synchronization errors.
Minimal length compensation on compression and expansion balances very small pitch differences between synchro spindle and tap, which can cause high frictional forces on the thread flanks.
A possible increase in axial force during the tapping process is reduced to a minimum.
Suitable for internal coolant.
Coolant pressure up to max. 100 bar.

Delivery:
With balanced clamping nut
