Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12

Name: Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12
Brand: ATORN
SKU: 4420216316
Availability: OutOfStock

Производитель: ATORN Модель: 35287

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12

Нет в наличии

0.0 грн.

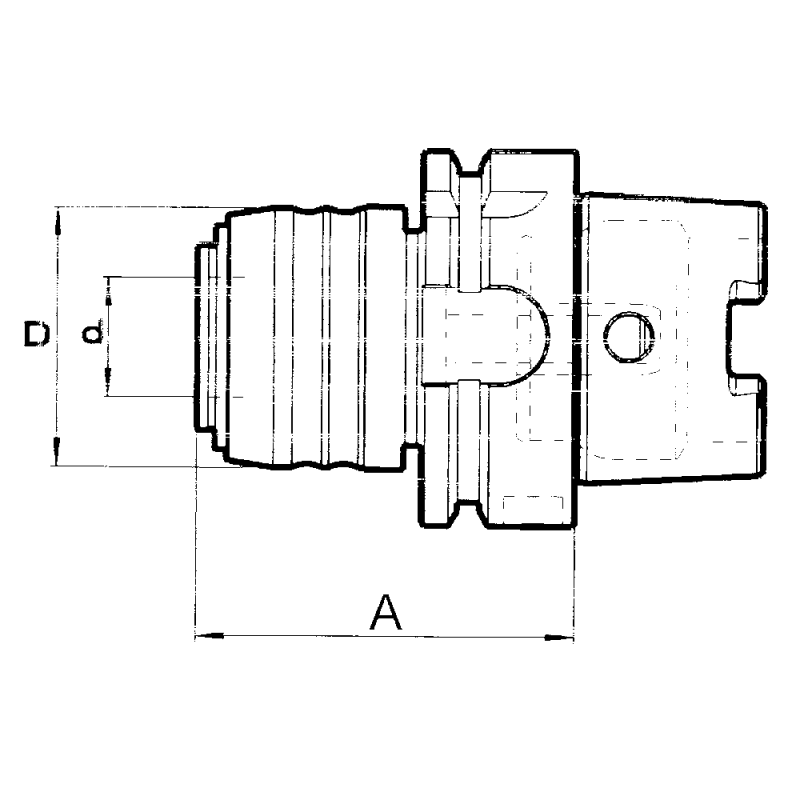

a:64 mm

Balancing quality:G 2.5 at 25,000 rpm

Collet type:ER 16

Coolant supply:Internal axial

D:43 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12

0.0 грн.

Описание

Also available for machines with minimum-volume lubrication
Thread cutting quick-change chuck for synchronous spindles

Minimum length compensation thanks to damping element
Secure clamping in quick-release inserts for ER collets
Clamping screws to prevent the clamped tap from twisting
For use on drilling machines and machining centers with synchronous spindles

DIN 69893 type A (HSK-A)

Internal coolant supply
When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
Supplied without quick-release insert

Характеристики

64 mm

Balancing quality

G 2.5 at 25,000 rpm

Collet type

ER 16

Coolant supply

Internal axial

43 mm

20 mm

DIN

69893-1
