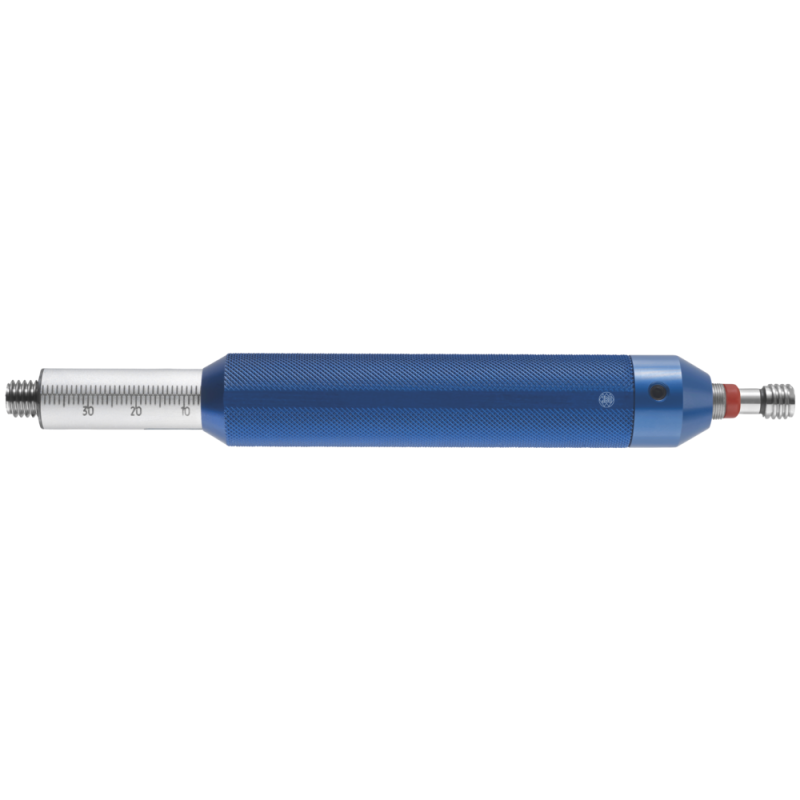

Thread plug gauge with depth measurement Multicheck M10 6H scale 0.5 mm

Name: Thread plug gauge with depth measurement Multicheck M10 6H scale 0.5 mm
Brand: SARA
SKU: 5410150010
Availability: OutOfStock

Производитель: SARA Модель: 27365

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

D:M10

DIN:13

Packaging unit:1

Pitch:1.5 mm

Reading:0.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Thread plug gauge with depth measurement Multicheck M10 6H scale 0.5 mm

0.0 грн.

Описание

Thread gauges MultiCheck with depth measurement

Simultaneous testing of the thread gauge accuracy and the thread depth, time savings of up to 50%
Direct reading of the thread depth using the scale on the sliding sleeve
Thread depth measurements up to 4xD
Go and no-go ends made of wear-resistant gauge steel, aged, hardened and precision-ground
Tolerances and dimensions in accordance with DIN ISO 1502
Easy replacement of test pieces by user
Replacement test piece, test piece for thread types, thread gauges with reading 0.01, analogue or digital on request

Характеристики

M10

DIN

Packaging unit

Pitch

1.5 mm

Reading

0.5 mm

Standard constructional dimensions DIN

DIN ISO 1502

Thread

M10
