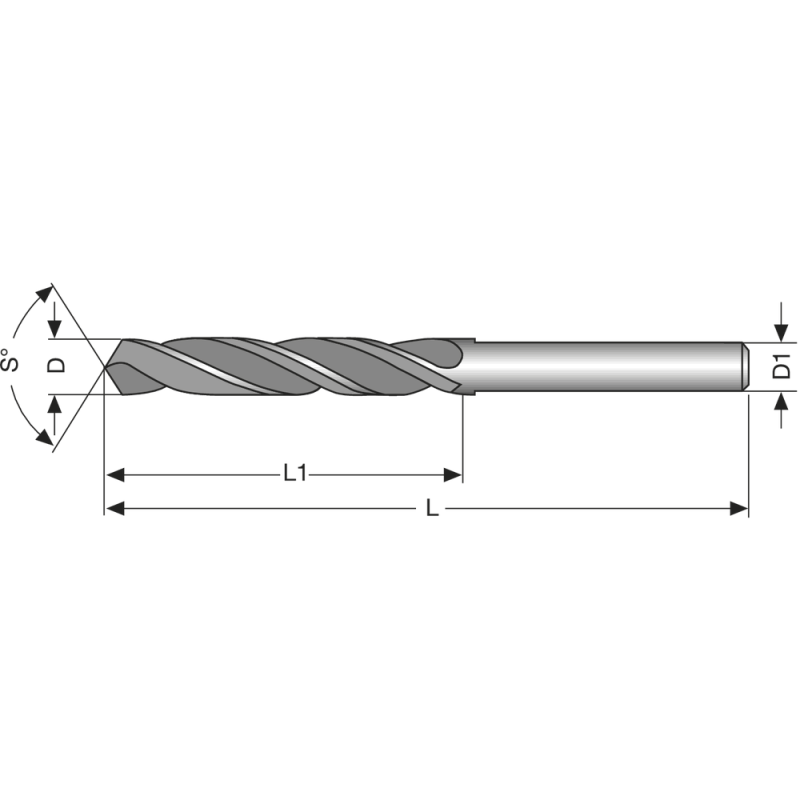

Twist drill HSS WN type N, 13.5mm shank-offset to 12.7mm vapor-treated

Name: Twist drill HSS WN type N, 13.5mm shank-offset to 12.7mm vapor-treated
Brand: ATORN
SKU: 1010801350
Availability: OutOfStock

Производитель: ATORN Модель: 42761

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Twist drill HSS WN type N, 13.5mm shank-offset to 12.7mm vapor-treated

Нет в наличии

0.0 грн.

A dimension:4.06 mm

Cantilever length:102 mm

Conical transition neck contour (xsg):100 mm

Coolant supply:External

Cutting data:Cutting angle information - yes

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Twist drill HSS WN type N, 13.5mm shank-offset to 12.7mm vapor-treated

0.0 грн.

Описание

Twist drill bit

Offset uniform shank
Clamping and tooling benefits due to uniform length of straight shank irrespective of diameter
Vapour-treated

Usage characteristics

aluminum < 8% Si
aluminum >= 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
graphite
austenitic stainless steel
stainless steel ferrit./martens.
steel < 1000 N/mm2
steel < 1400 N/mm2
steel < 700 N/mm2
titanium alloys

Характеристики

Feed f steel

0.22 mm/rev

Totally stainless steel suitability

Характеристики

A dimension

4.06 mm

Cantilever length

102 mm

Conical transition neck contour (xsg)

100 mm

Coolant supply

External

Cutting data

Cutting angle information - yes

Cutting diameter max.

25.0 mm

Cutting diameter min.

13.5 mm

Cutting diameter min./max.

13.5-25.0 mm

Cutting material

HSS

Cutting speed (brass long)

30.00 m/min

Cutting speed (bronze long)

20.00 m/min

Cutting speed (bronze short)

30.00 m/min

Cutting speed (plastic)

20.00 m/min

13.50 mm

12.7 mm

DIN

Company standard

fitness hartl total

152 mm

76 mm

Max. drilling depth (D)

3xD

Neck length

100 mm

Packaging unit

118 °

Section shape

Cone-shaped shell type A

Shank length calculated

52 mm

Shank length stepped

50 mm

Suitability not total iron

Suitability titanium/nickel/super total

Surface

Vaporized

Tolerance of cutting edge diameter

Tool holding device

Reduced parallel shank, diameter 12.7 mm

Twist angle

27°

Type

2 pc.
