Universal lifting magnet FX-600

Name: Universal lifting magnet FX-600
Brand: FLAIG
SKU: 4725100600
Availability: OutOfStock

Производитель: FLAIG Модель: 55530

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

D:Ø80-400 = 300kg mm

Designation:FX-600

Length x width x height:288 x 112 x 94 mm

Load bearing capacity:600 kg

Packaging unit:1

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Universal lifting magnet FX-600

0.0 грн.

Описание

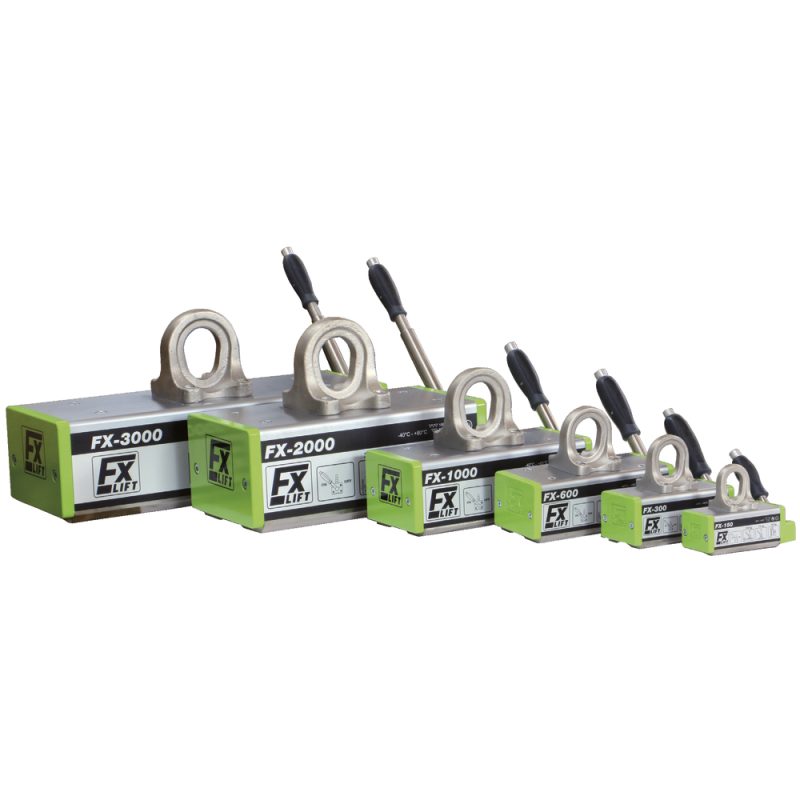

Universal lifting magnet FX

Monoblock magnetic shaft, made of one piece, fully nickel-plated, ball bearing mounted, without mechanical weak point
Solid stator housing made from one piece, nickel-plated all around for maximum corrosion protection
High-energy half-shell magnets guarantee stable performance up to 80° working temperature in the magnet core
Safety factor 3.5
Large forged crane eye
Very solid shift shaft
Dust-protected ball bearings on the selector shaft
One-hand operation without recoil
Suitable for flat and round materials

Universal lifting magnet FX with safety lock

Характеристики

Ø80-400 = 300kg mm

Designation

FX-600

Length x width x height

288 x 112 x 94 mm

Load bearing capacity

600 kg

Packaging unit

Weight

19 kg
