Vacuum clamping system with adapter mats 600x400x32.5mm

Name: Vacuum clamping system with adapter mats 600x400x32.5mm
Brand: ATORN
SKU: 4750836041
Availability: OutOfStock

Производитель: ATORN Модель: 39702

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

Adapter board height:32.5 mm

Adapter board length:600 mm

Adapter board width:400 mm

For number of adapter mats:4 pc.

Grid dimension:12.5 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Vacuum clamping system with adapter mats 600x400x32.5mm

0.0 грн.

Описание

Vacuum clamping technology
Vacuum clamping system with adapter mats

For wet and dry machining, with vacuum pump, no Venturi nozzle
For workpieces with openings
Construction with sealing cord, aluminum adapter plate and adapter mats
For workpieces without openings
Construction with sealing cord only, directly on the grid plate
The modular construction allows multiple vacuum plates to be connected with overlapping grids. The operating vacuum is supplied to the individual plates via the connection elements.

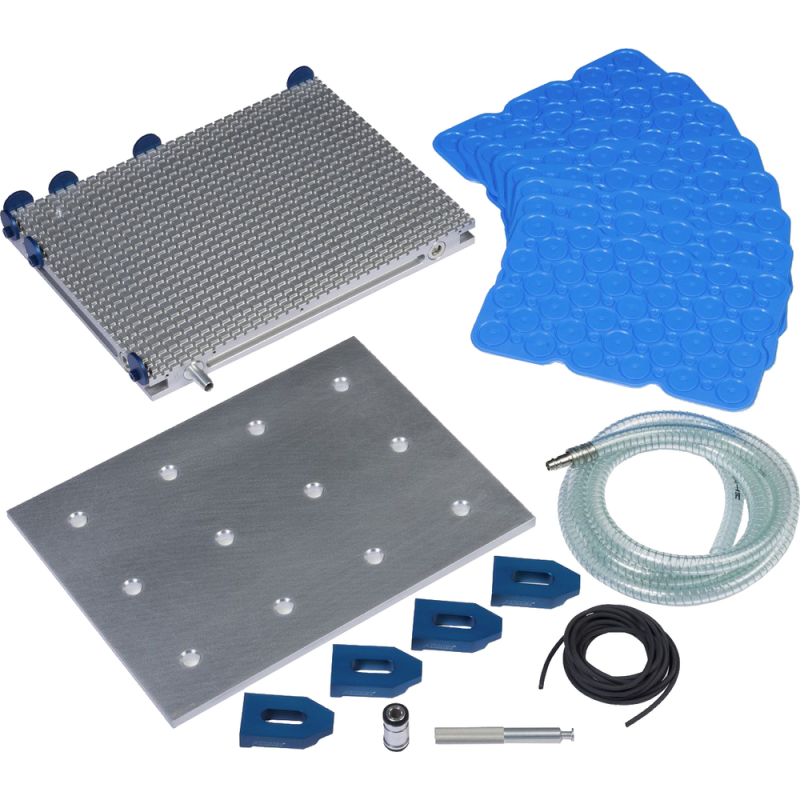

Each set comprises:
1x modular grid plate with 12.5 mm grid
1x aluminum adapter plate with 12.5 mm grid
Set VM1: 10 blue adapter mats
Set VM2: 9 blue adapter mats, 1 black
Set VM3: 8 blue adapter mats, 2 black
4x clamping claws with slot width = 14 mm
1x assembly tool for replacing blind plugs
3 m vacuum hose with wire helix
10 m vacuum sealing cord, O 4 mm, black
