VDI 30 angled drilling/milling head, l/r, short ER25 mount, PRECI-FLEX® IC/EC

Name: VDI 30 angled drilling/milling head, l/r, short ER25 mount, PRECI-FLEX® IC/EC
Brand: Eppinger
SKU: 4305113125
Availability: OutOfStock

Производитель: Eppinger Модель: 51577

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

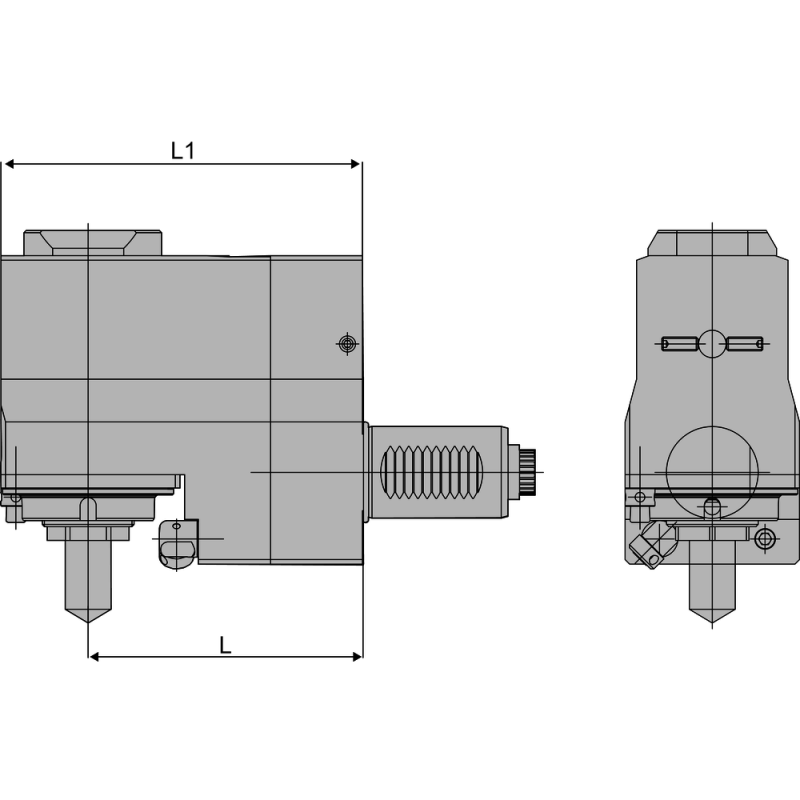

VDI 30 angled drilling/milling head, l/r, short ER25 mount, PRECI-FLEX® IC/EC

Нет в наличии

0.0 грн.

Coolant supply:Internal and external

L:85 mm

L1:117.5 mm

Packaging unit:1

Suitable for collet type:ER 25

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

VDI 30 angled drilling/milling head, l/r, short ER25 mount, PRECI-FLEX® IC/EC

0.0 грн.

Описание

PRECI-FLEX ^® powered tool holder with VDI shank

for CNC lathes with Sauter turret and drive coupling DIN 5480
Each tool holder must be run in. Thus temperature and noise emissions are monitored, measured and recorded.
compact design of the single-piece base body
very rigid bearing above taper roller bearing
optimal position of the spindle
patented seals to minimize heat generation
internal cooling up to max. 70 bar
all wear parts hardened and ground

Angled boring/milling head, offset
