Wedge bar chuck DURO-T DIN55027/KK5 200mm (U)

Name: Wedge bar chuck DURO-T DIN55027/KK5 200mm (U)
Brand: R%c3%96HM
SKU: 4050140200
Availability: OutOfStock

Производитель: R%c3%96HM Модель: 43647

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

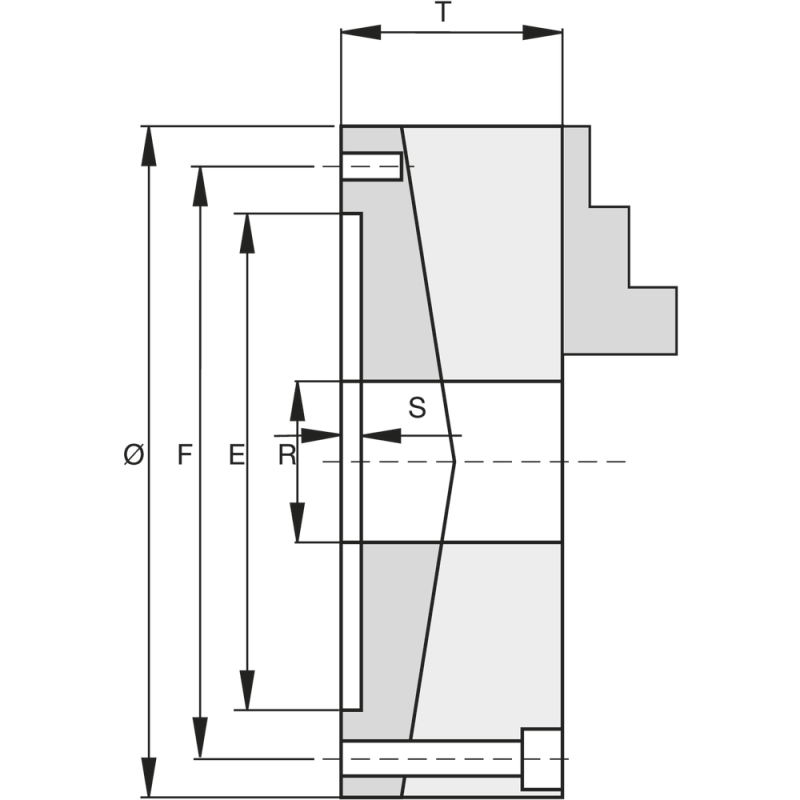

Chuck height (without jaws):81

Clamping range:7-207

Clearance hole:52 mm

Design:with reversible jaws

External Ø:200 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Wedge bar chuck DURO-T DIN55027/KK5 200mm (U)

0.0 грн.

Описание

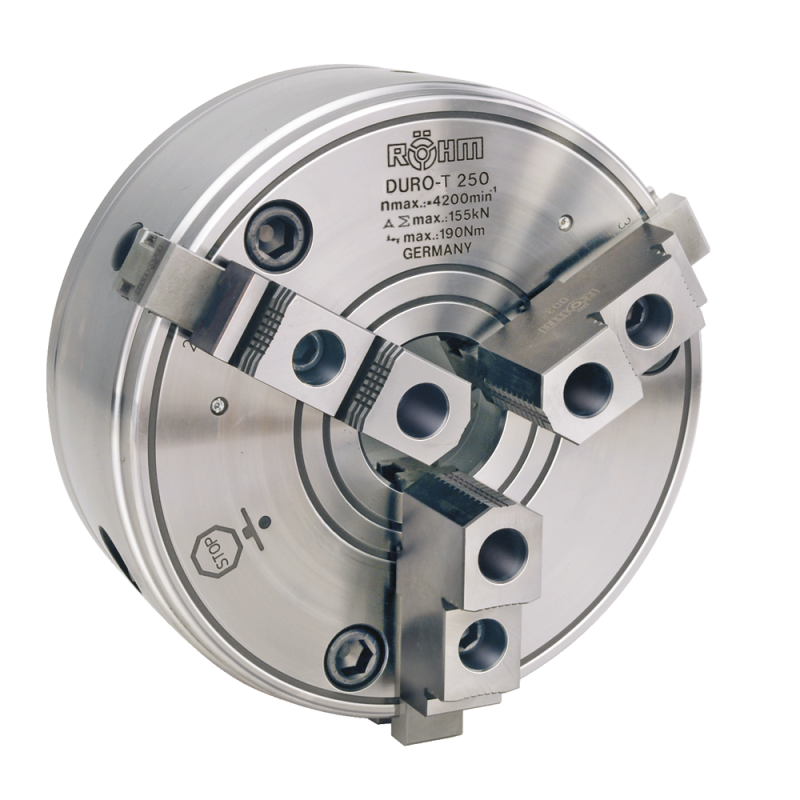

Wedge bar chuck DURO-T

With jaw safety mechanism, centric clamping
Higher clamping forces
Stiffer chuck body (guaranteed accuracy at higher loads)
Chuck body fully surface-hardened

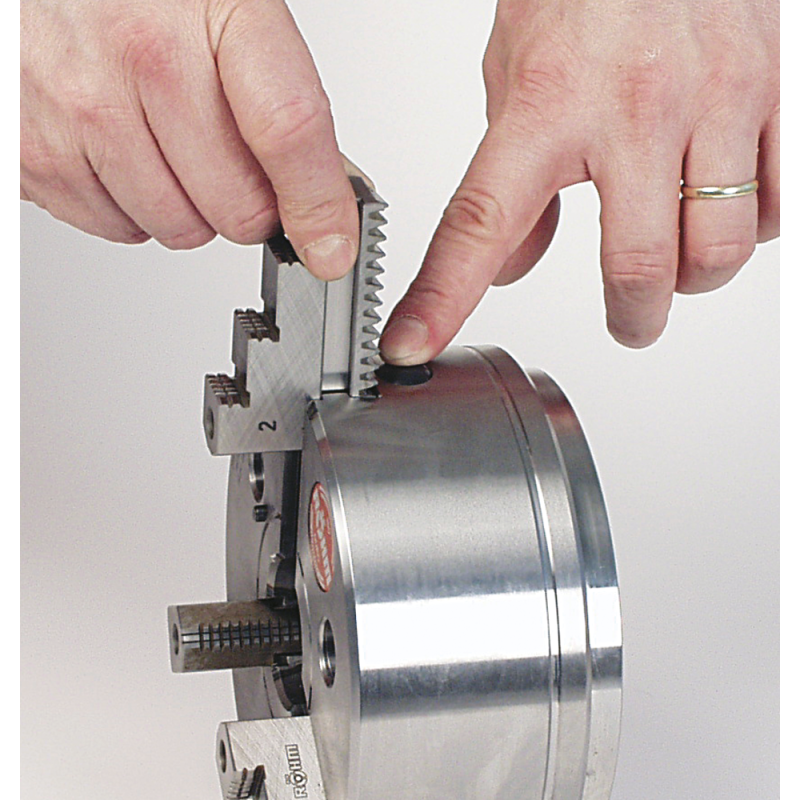

High jaw change repeatability
Optimized wearing parts (eg safety shut-off valve)
True running and axial run-out tolerance twice as accurate as specified by DIN accuracy class 1
Enhanced corrosion protection
Compatible with base and top jaws from other manufacturers
Supplied with safety key (as demanded by EN 1550), set of reversible one-piece jaws or set of base jaws with reversible top jaws
