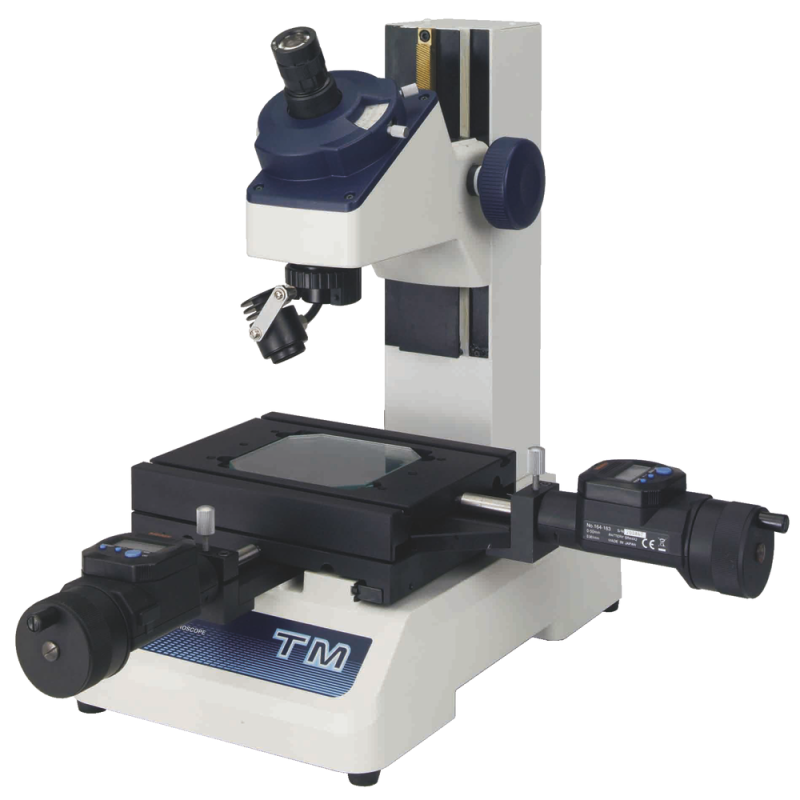

Workshop measuring microscope TM 1005 B with digital micrometers + ring lamp

Name: Workshop measuring microscope TM 1005 B with digital micrometers + ring lamp
Brand: MITUTOYO
SKU: 5615011013
Availability: OutOfStock

Производитель: MITUTOYO Модель: 32628

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Workshop measuring microscope TM 1005 B with digital micrometers + ring lamp

Нет в наличии

0.0 грн.

E:100 x 50 mm

Model:TM 1005B

Packaging unit:1

Travel:100 x 50 mm

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Workshop measuring microscope TM 1005 B with digital micrometers + ring lamp

0.0 грн.

Описание

Workshop measuring microscope

Compact and robust base body made from special cast iron
Coordinate measuring table
Dovetail guide with rack and pinion drive for adjusting the microscope head to alter focus
Standard magnification 30x (lens 2x, eyepiece 15x)
Test item displayed without inversion
Backlighting, incident lighting and ring lamp
Replaceable crosshair graticule built into the eyepiece
Additional graticules (eg for determining radii or for thread measurement) are available on request
Angle measuring device, can be rotated through 360°, Vernier scale 6 minutes
Supplied with 2x lens, 15x eyepiece, graticule with crosshair,
measuring table with digital built-in micrometer no. 505404 0001 , LED backlighting and LED incident lighting, LED ring lamp with holding fixture adapter, 2 spare bulbs (24 V),
spare fuse (0.5 A), covering hood, power supply for connection to 230 V / 50 Hz,
Operating manual, shipped in disposable packaging

set

Contains 7 pcs.: TM 505/510 microscope, lens with 2x magnification, eyepiece with 15x magnification, crosshair graticule, 2 digital built-in micrometers, ring lamp with holding fixture adapter

set

Contains 7 pieces: TM-505B / TM-1005B microscope, lens with 2x magnification, eyepiece with 15x magnification, crosshair reticule, 2 digital built-in micrometers, ring light with holding fixture adapter

Характеристики

100 x 50 mm

Model

TM 1005B

Packaging unit

Travel

100 x 50 mm
