Zero setter 68x47mm with dial indicator

Name: Zero setter 68x47mm with dial indicator
Brand: SARA
SKU: 5580200001
Availability: OutOfStock

Производитель: SARA Модель: 43935

Все о товаре

Описание

Характеристики

Отзывы 0

Вопросы0

Нет в наличии

0.0 грн.

a:64.5 mm

Design:with dial gauge

Designation:with dial gauge

Enclosure Ø:64.5 mm

Magnetic foot:no

Доставка

Курьером по Киеву Доставим в день получения

Новой почтой в отделения и почтоматы

по тарифам перевозчика

Оплата

оплата по счету

Zero setter 68x47mm with dial indicator

0.0 грн.

Описание

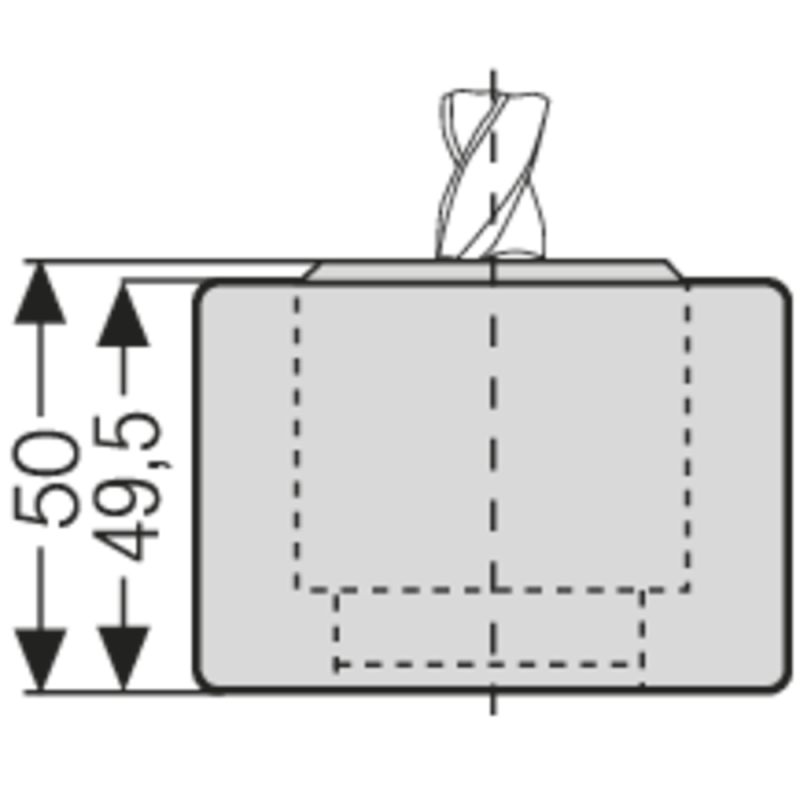

Zero adjuster, height 50 mm

For setting machine reference points

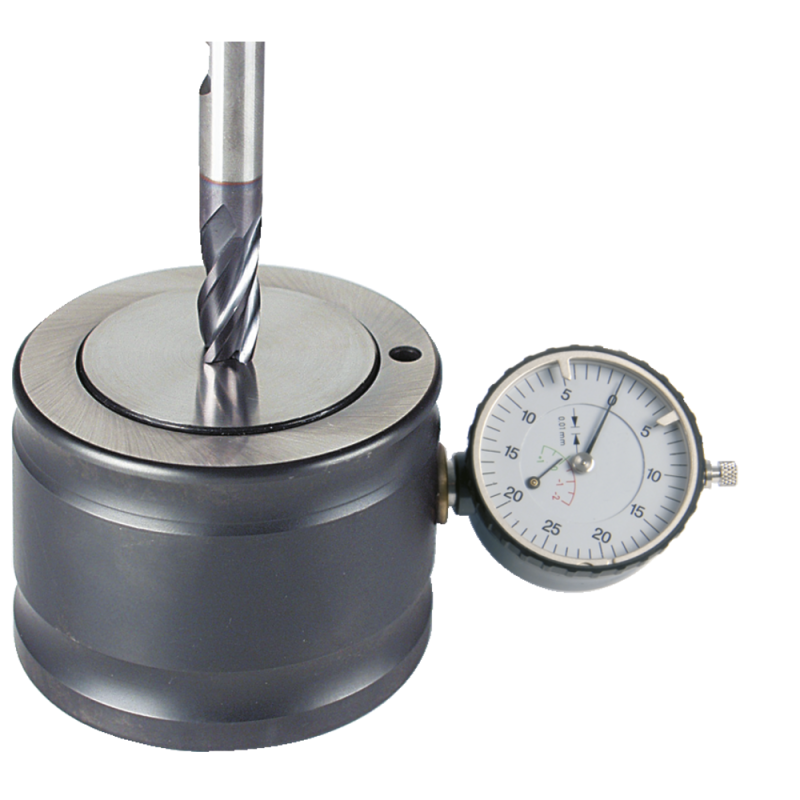

The adjusting device is placed on the workpiece and the tool (eg milling cutter) moved towards the spring-mounted contact surface until both pointers on the dial indicator are at zero. The lower edge of the tool is now positioned at exactly 50 mm ± 0.01 mm. The reference dimension of 50 mm is entered into the machine control system.
Caution: Process may only be performed while the tool is stationary.
Base body and probe insert are case-hardened (60 HRC) and finely ground
Two guide diameters for optimal handling of the contact surface
558020 0005: six magnets in the base, plane-ground
Supplied in a wooden case with dial indicator, operating manual and measurement log

For setting the reference point in the machine
The adjusting device is placed on the workpiece and the tool (eg milling cutter) moved towards the spring-mounted contact surface until both pointers on the dial gauge are at zero. The lower edge of the tool is now positioned at exactly 50 mm ± 0.01 mm. The reference dimension 50 mm is entered into the machine control system.
Attention : Process may only be performed while the tool is stationary.
Base body and probe tip are case hardened (60 HRC), finely ground
558020 0005: six magnets in the base, surface ground
Supplied with dial gauge, operating manual and measurement log

Характеристики

64.5 mm

Design

with dial gauge

Designation

with dial gauge

Enclosure Ø

64.5 mm

Magnetic foot

Measuring surface diameter

47 mm

Packaging unit
